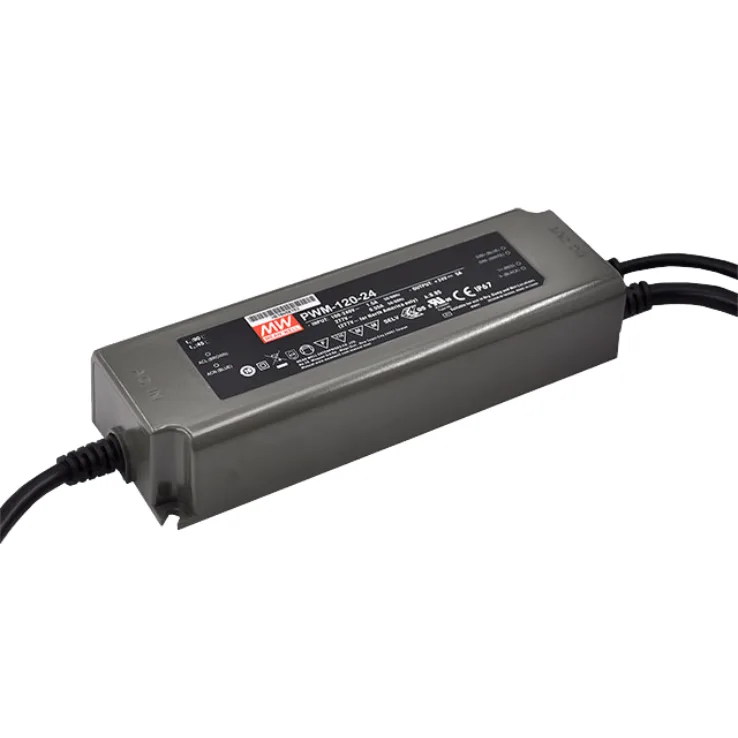

Mean Well PWM-120 Series Bluetooth LED Drivers 120–122.4W

Download Datasheet
Models:
  • PWM-120-12
  • PWM-120-24
  • PWM-120-36
  • PWM-120-48
Manufacturer: Mean Well
Type: Bluetooth LED Drivers

PWM-120 Series Features:

0-10V Constant Voltage LED Driver

Constant Voltage PWM style output with frequency up to 4KHz compliant IEEE1789-2015 no-risk

Other features:

  • Plastic housing with class II design
  • built-in active PFC function
  • Standby power consumption <0.5W
  • Typical lifetime >50.000 hours
  • 5 years warranty
Wattage 120 120 122.4 120
Input Voltage 90-305VAC 90-305VAC 90-305VAC 90-305VAC
Output Voltage 12 24 36 48
Output Voltage Options Single Single Single Single
Dimensions 191x 63x 37.5 191x 63x 37.5 191x 63x 37.5 191x 63x 37.5
Working Temperature -40-+70°C
Safety Standards UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13,EN62384 independent, IP67 approved; Design refer to EN60335-1
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547,Light industry level (Surge L-N : 2KV), criteria A
