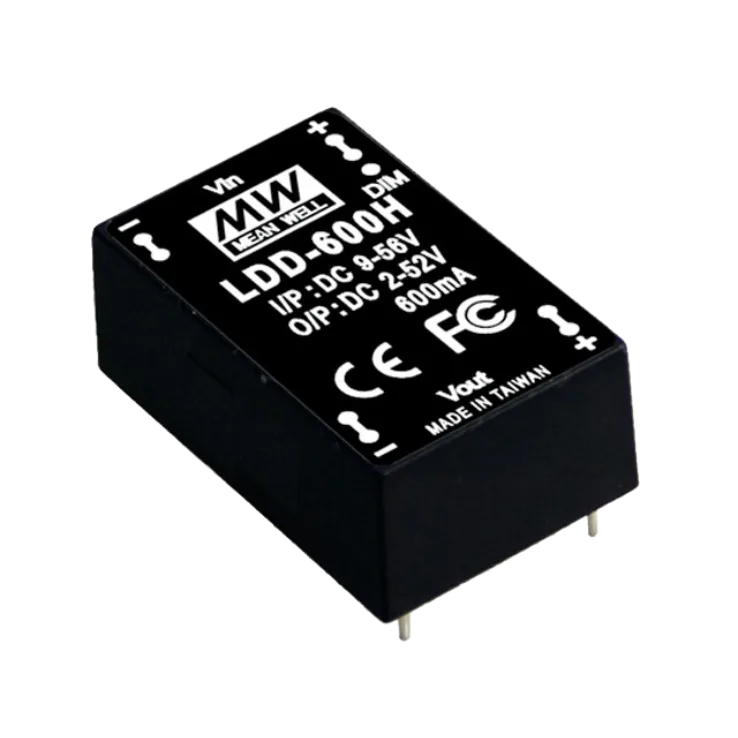

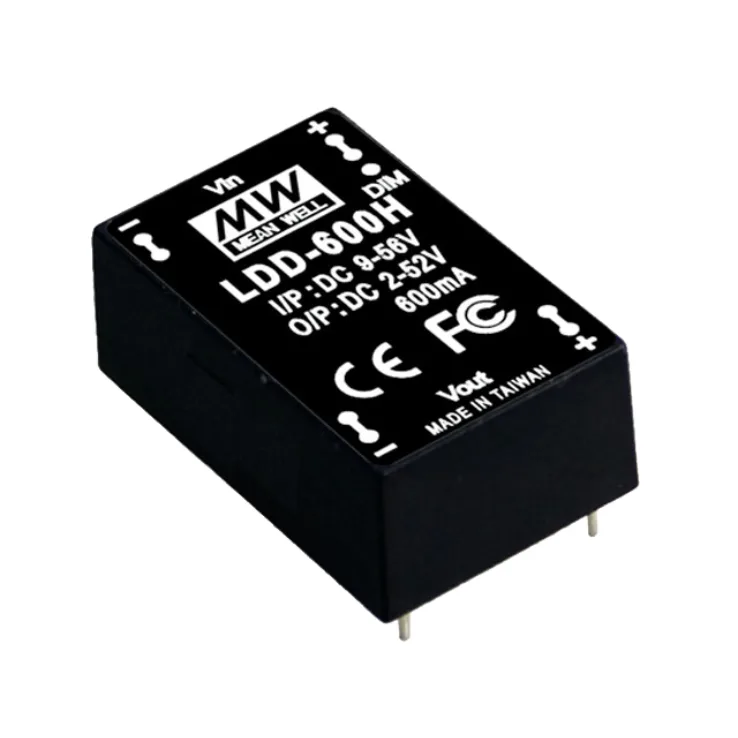

MEAN WELL LDD-H Series DC-DC LED Drivers 16–69W

Download Datasheet
Models:
  • LDD-300H
  • LDD-350H
  • LDD-500H
  • LDD-600H
  • LDD-700H
  • LDD-1000H
  • LDD-1200H
  • LDD-1500H
Manufacturer: MEAN WELL
Type: DC-DC LED Drivers

LDD-H Series Features:

DC/DC step-down converter

Constant current output: 300mA to 1500mA

Wide output LED string voltage: 2 ~ 52VDC

Protections: Short circuit / Over temperature

Other features:

  • Wide input voltage: 9 ~ 56VDC
  • High efficiency up to 97%
  • Built-in EMI filter, comply with EN55015 and FCC part15 without additional input filter and capacitors
  • Built-in PWM and remote ON/OFF control
  • Cooling by free air convection
  • Compact size
  • Fully encapsulated with IP67 level for pin and wire style
  • Low cost, high reliability
  • Suitable for driving illumination LED
  • 3 years warranty
Wattage 16 18 26 30 35 52 55.2 69
Input Voltage 9~56VDC 9~56VDC 9~56VDC 9~56VDC 9~56VDC 9-56VDC 9-56VDC 9-56VDC
Output Current 300mA 350mA 500mA 600mA 700mA 1000mA 1200mA 1500mA
Output Voltage 2~52VDC 2~52VDC 2~52VDC 2~52VDC 2~52VDC 2~52VDC 2~46VDC 2~46VDC
Output Voltage Options Single Single Single Single Single Single Single Single
Dimensions 31.8x 20.3x 12.2 31.8x 20.3x 12.2 31.8x 20.3x 12.2 31.8x 20.3x 12.2 31.8x 20.3x 12.2 31.8x 20.3x 12.2 31.8x 20.3x 12.2 31.8x 20.3x 12.2
Working Temperature -30~+70°C
Safety Standards EAC TP TC 004 approved
EMC Standards Compliance to EN55015, FCC part 15 class B, EAC TP TC 020
