MEAN WELL LDDS-H Series DC-DC LED Drivers W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DC-DC LED Drivers |
LDDS-H Series Features:

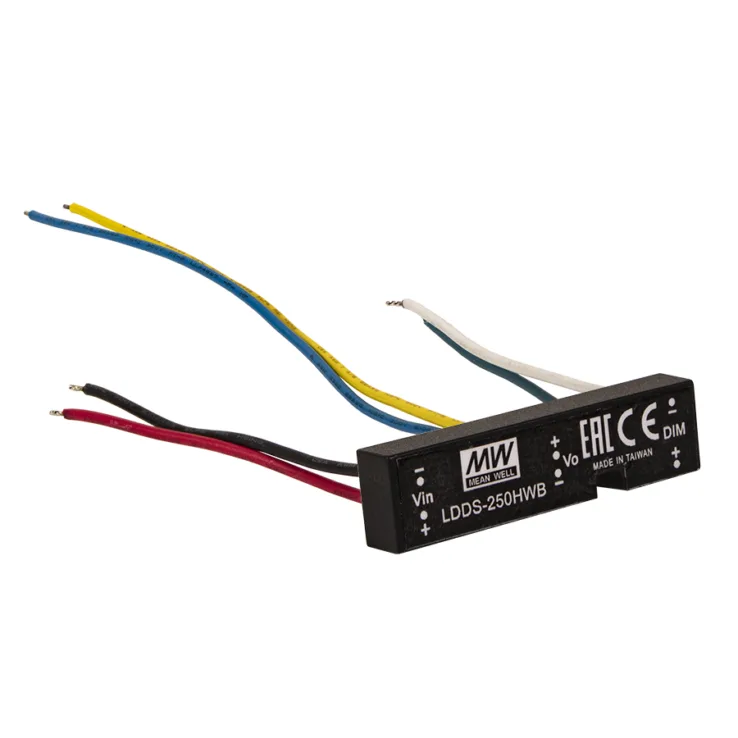

LDDS-H series is a 45W DC/DC LED drive featuring constant current output.
Features:
- DC/DC step-down converter
- Constant current output: 250mA to 1000mA
- Wide input voltage:12~56VDC(48V typ.)
- Wide output LED forward string voltage: 2~45VDC
- High efficiency up to 96%
- Built-in EMI filter, comply with EN55015
- 3 in 1 dimming and remote ON/OFF control
- Protections: Short circuit / Over temperature / Over current
- Cooling by free air convection
- Compact size and fully encapsulated
- Suitable for driving illumination LED
- 5 years warranty
| Input Voltage | 12~56vdc | 12~56vdc | 12~56VDC | 12~56VDC | 12~56VDC | 12~56VDC | 12~56VDC | 12~56VDC | 12~56VDC | 12~56VDC | 12~56VDC | 12~56VDC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Current | 250mA | 300mA | 350mA | 500mA | 700mA | 1000mA | 250mA | 300mA | 350mA | 500mA | 700mA | 1000mA |
| Output Voltage Options | 2~45VDC | 2~45VDC | 2~45VDC | 2~45VDC | 2~45VDC | 2~45VDC | 2~45VDC | 2~45VDC | 2~45VDC | 2~45VDC | 2~45VDC | 2~45VDC |
| Dimensions | 47*12*7mm | 47*12*7mm | 47*12*7mm | 47*12*7mm | 47*12*7mm | 47*12*7mm | 47*12*7mm | 47*12*7mm | 47*12*7mm | 47*12*7mm | 47*12*7mm | 47*12*7mm |
| Working Temperature | -40~55°C | |||||||||||
| Safety Standards | EAC TP TC 004 approved | |||||||||||
| EMC Standards | Compliance to EN55015, EAC TP TC 020 | |||||||||||
