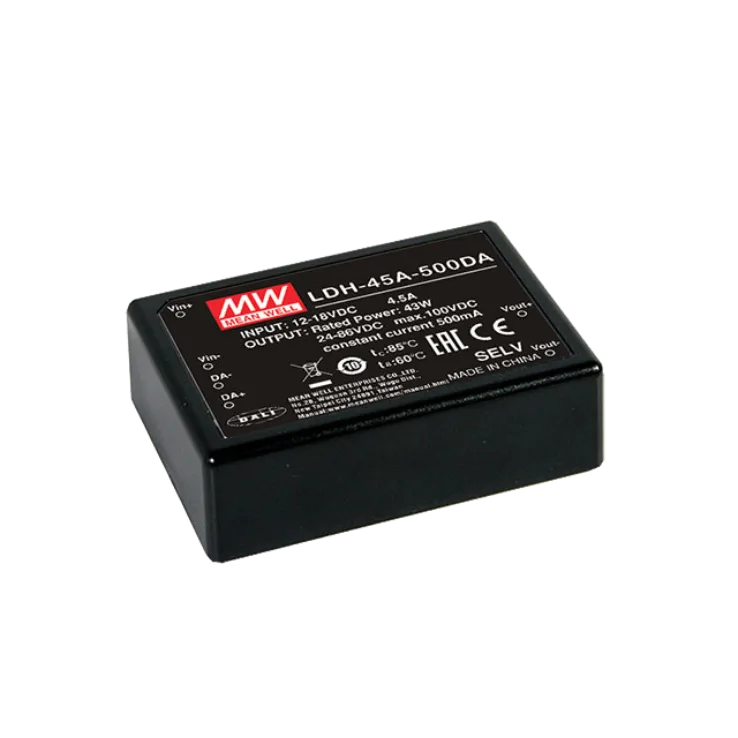

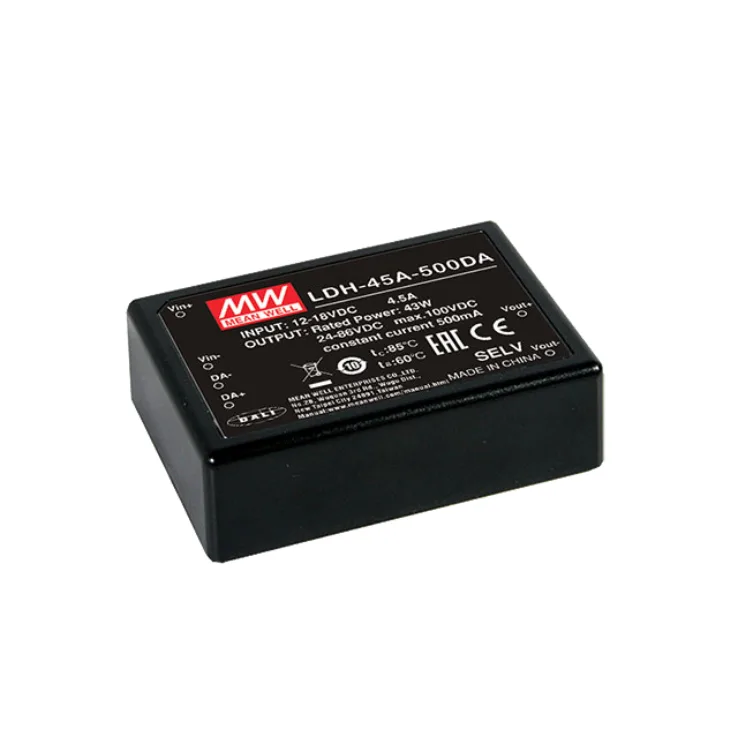

MEAN WELL LDH-45 DA Series DC-DC LED Drivers 30.1–45.15W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DC-DC LED Drivers |
LDH-45 DA Series Features:
Features:
- DC/DC step-up converter
- Constant current output 350mA to 1050mA
- Wide output LED string voltage up to 126VDC
- High efficiency up to 95%
- Built-in EMI filter, comply with EN55015 without additional input filter and capacitors
- PWM + analog dimming and remote ON/OFF control(Blank type or W type)
- DALI dimming (Blank DA type or WDA type)
| Wattage | 30.1 | 43 | 44.8 | 44.1 | 44.1 | 43 | 44.8 | 45.15 |
|---|---|---|---|---|---|---|---|---|
| Input Voltage | 9~18VDC | 9~18VDC | 9~18VDC | 9~18VDC | 18~32VDC | 18~32VDC | 18~32VDC | 18~32VDC |
| Output Current | 350mA | 500mA | 700mA | 1050mA | 350mA | 500mA | 700mA | 1050mA |
| Output Voltage | Non Dali 12~86VDC / DALI 24~86VDC | Non Dali 12~86VDC / DALI 24~86VDC | Non Dali 12~64VDC / DALI 24~64VDC | Non Dali 12~43VDC / DALI 24~43VDC | Non Dali 21~126VDC / DALI 36~126VDC | Non Dali 21~86VDC / DALI 36~86VDC | Non Dali 21~64VDC / DALI 36~64VDC | Non Dali 21~43VDC / DALI 36~43VDC |
| Dimensions | 75*53*22.7mm | 75*53*22.7mm | 75*53*22.7mm | 75*53*22.7mm | 75*53*22.7mm | 75*53*22.7mm | 75*53*22.7mm | 75*53*22.7mm |
| Working Temperature | -40~+70°C | |||||||
| Safety Standards | EAC TP TC 004 approved | |||||||
| EMC Standards | Compliance to EN55015; EAC TP TC 020 | |||||||
