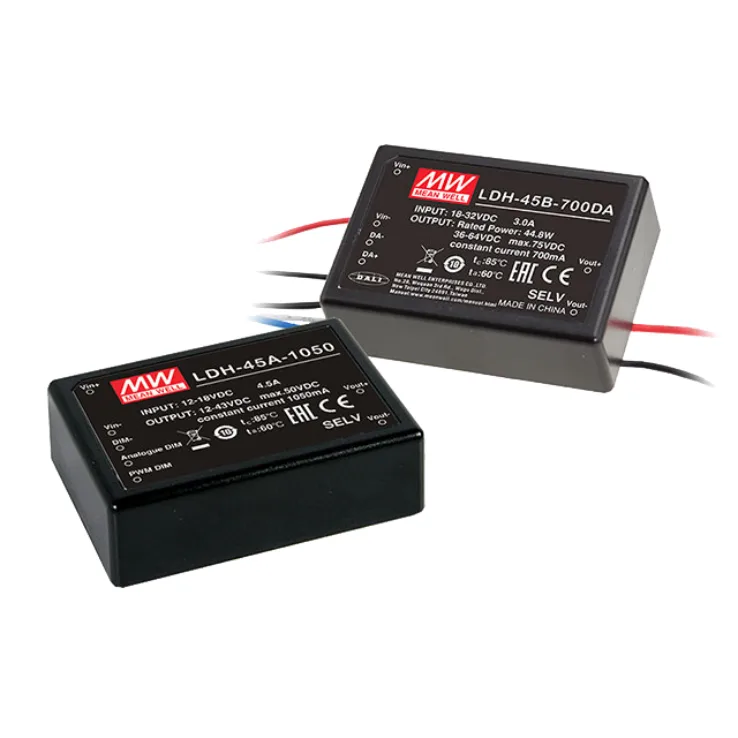

Mean Well LDH-45 Series DC-DC LED Drivers 30.1–45.15W

Download Datasheet
Models:
  • LDH-45A-350
  • LDH-45A-500
  • LDH-45A-700
  • LDH-45A-1050
  • LDH-45B-350
  • LDH-45B-500
  • LDH-45B-700
  • LDH-45B-1050
Manufacturer: Mean Well
Type: DC-DC LED Drivers

LDH-45 Series Features:

Features:

  • DC/DC step-up converter
  • Constant current output 350mA to 1050mA
  • Wide output LED string voltage up to 126VDC
  • High efficiency up to 95%
  • Built-in EMI filter, comply with EN55015 without additional input filter and capacitors
  • PWM + analog dimming and remote ON/OFF control(Blank type or W type)
  • DALI dimming (Blank DA type or WDA type)
Wattage 30.1 43 44.8 44.1 44.1 43 44.8 45.15
Input Voltage 9~18VDC 9~18VDC 9~18VDC 9~18VDC 18~32VDC 18~32VDC 18~32VDC 18~32VDC
Output Current 350mA 500mA 700mA 1050mA 350mA 500mA 700mA 1050mA
Output Voltage Non Dali 12~86VDC / DALI 24~86VDC Non Dali 12~86VDC / DALI 24~86VDC Non Dali 12~64VDC / DALI 24~64VDC Non Dali 12~43VDC / DALI 24~43VDC Non Dali 21~126VDC / DALI 36~126VDC Non Dali 21~86VDC / DALI 36~86VDC Non Dali 21~64VDC / DALI 36~64VDC Non Dali 21~43VDC / DALI 36~43VDC
Dimensions 75*53*22.7mm 75*53*22.7mm 75*53*22.7mm 75*53*22.7mm 75*53*22.7mm 75*53*22.7mm 75*53*22.7mm 75*53*22.7mm
Working Temperature -40~+70°C
Safety Standards EAC TP TC 004 approved
EMC Standards Compliance to EN55015; EAC TP TC 020
