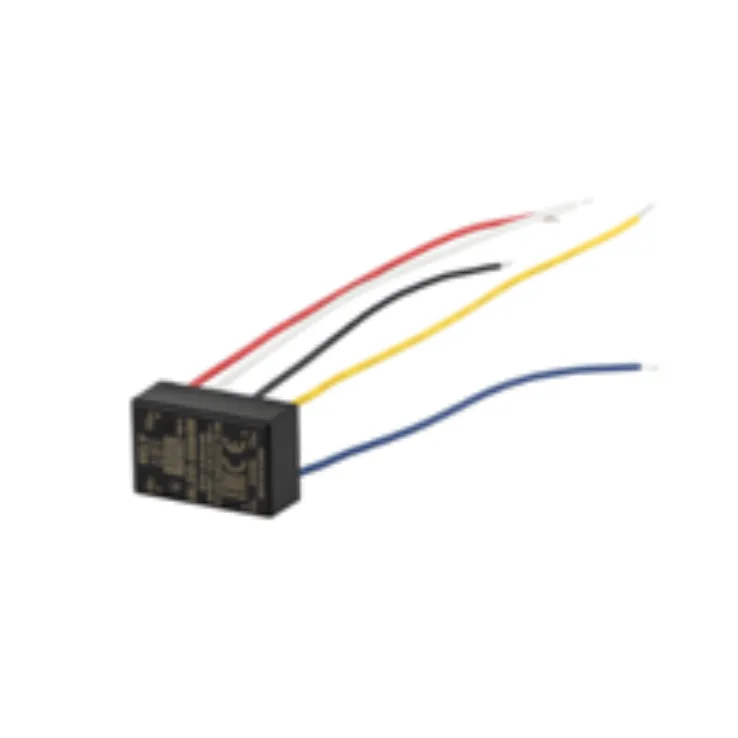

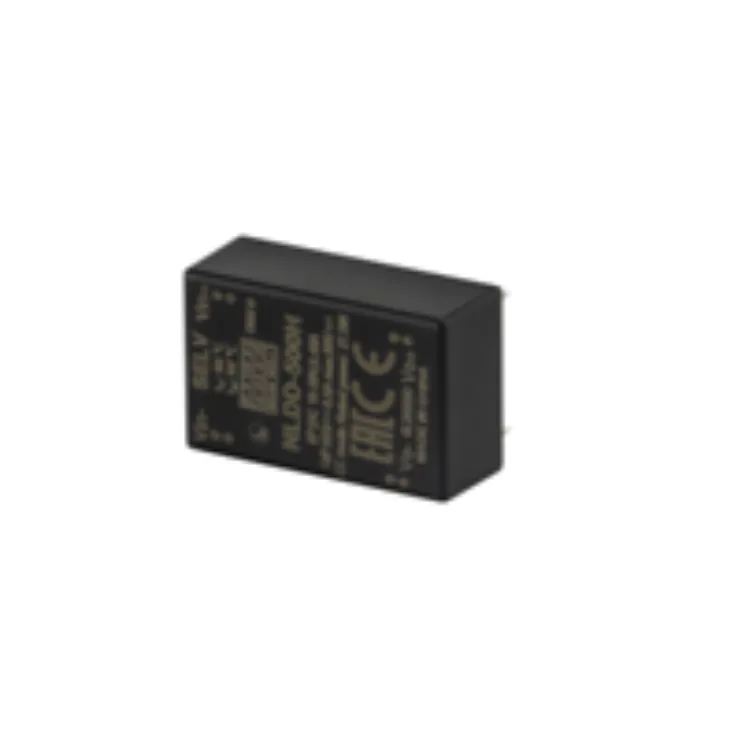

Mean Well NLDD-H Series DC-DC LED Drivers W

Download Datasheet
Models:
  • NLDD-350H
  • NLDD-500H
  • NLDD-700H
  • NLDD-1050H
  • NLDD-1200H
  • NLDD-1400H
  • NLDD-350HW
  • NLDD-500HW
  • NLDD-700HW
  • NLDD-1050HW
  • NLDD-1200HW
  • NLDD-1400HW
Manufacturer: Mean Well
Type: DC-DC LED Drivers

NLDD-H Series Features:

NLDD-H series is a 60W DC/DC LED drive featuring constant output.

Features:

  • DC/DC step-down converter
  • Constant current output: 350mA to 1400mA
  • Wide input voltage: 10~56VDC(59VDC Max.)
  • Wide output LED forward voltage : 6~52VDC
  • High efficiency up to 96%
  • Comply with EN61347 and EN55015 regulation
  • Built-in PWM and remote ON/OFF control
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully encapsulated and compact size
  • Suitable for driving illumination LED
  • 3 years warranty
Input Voltage 10~56VDC 10~56VDC 10~56VDC 10~56VDC 10~56VDC 10~56VDC 10~56VDC 10~56VDC 10~56VDC 10~56VDC 10~56VDC 10~56VDC
Output Current 350mA 500mA 700mA 1050mA 1200mA 1400mA 350mA 500mA 700mA 1050mA 1200mA 1400mA
Output Voltage Options 6~52VDC 6~52VDC 6~52VDC 6~52VDC 6~46VDC 6~46VDC 6~52VDC 6~52VDC 6~52VDC 6~52VDC 6~46VDC 6~46VDC
Dimensions 32.1*20.5*12.5mm 32.1*20.5*12.5mm 32.1*20.5*12.5mm 32.1*20.5*12.5mm 32.1*20.5*12.5mm 32.1*20.5*12.5mm 32.1*20.5*12.5mm 32.1*20.5*12.5mm 32.1*20.5*12.5mm 32.1*20.5*12.5mm 32.1*20.5*12.5mm 32.1*20.5*12.5mm
Working Temperature -40~50°C
Safety Standards IEC61347 and EAC TP TC004 approved
EMC Standards Compliance to EN55015, EN61547
