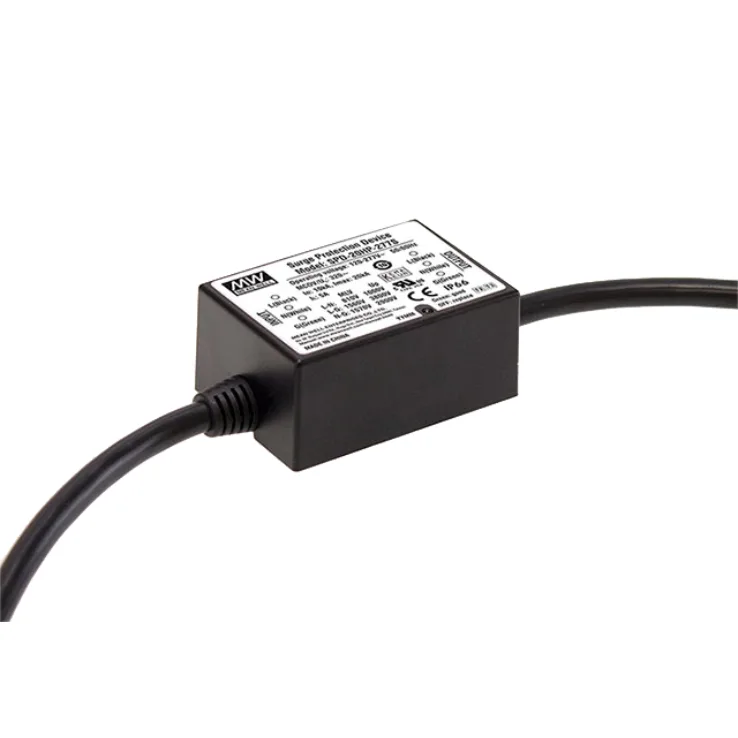

Mean Well SPD-20HP series LED Accessories W

Download Datasheet
Models:
  • SPD-20HP
  • SPD-20HP-480S
Manufacturer: Mean Well
Type: LED Accessories

SPD-20HP series Features:

SPD-20HP thermally protected Surge Protective Device is a self-protected device which is specially designed to be used in outdoor and commercial LED lighting fixtures for transient overvoltage protection.

Features:

  • Series connection style
  • UL1449 type 4 component assemblies
  • Line to Ground & Line to Line protected
  • 20kA maximum discharge current (I max), 8/20us
  • Low MLV/U
  • Thermally protected
  • Double insulation cable wire
  • LED status indicator
  • IP66 design for indoor or outdoor installations
  • Suitable for LED driver surge protection with class I insulation
  • 20KV surge protection capability
Input Voltage 120~277VAC 347~480VAC
Output Current 5A 5A
Output Voltage L-N:810V, L-G:1560G, N-G:1570V L-N:1400V, L-G:1560V, N-G:1570V
Dimensions 71.6*67.7*32mm 71.6*67.7*32mm
Working Temperature -40~+75°C
Safety Standards UL1449(Fourth Edition), EN6164311, EAC TPTC 004 approved UL1449(Fourth Edition), EAC TP TC 004 approved
