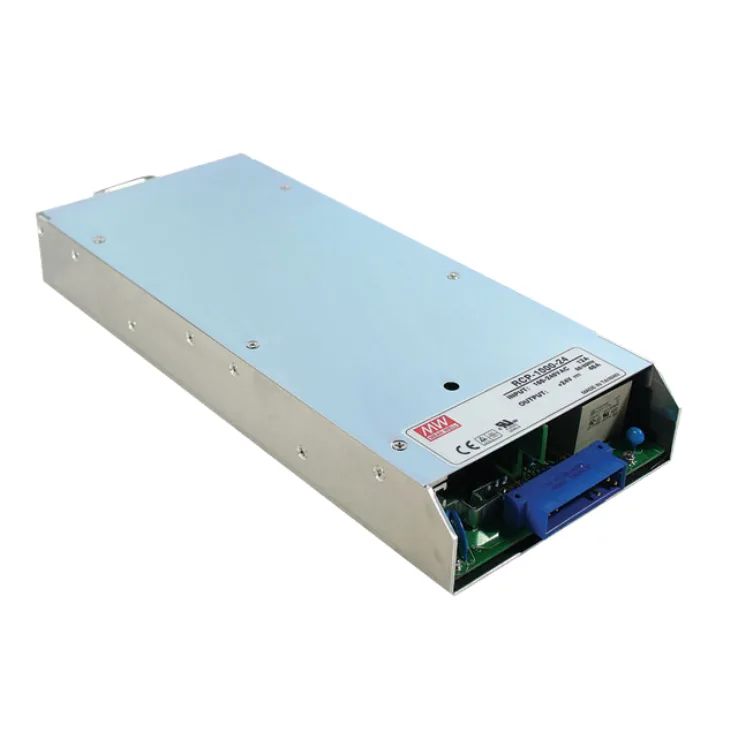

MEAN WELL RCP-1000 Series 19 Inch Rack Power 720–1008W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | 19 Inch Rack Power |
RCP-1000 Series Features:
1U low profile
Active current sharing up to 3000W (3 units) in one 19" rack, 3 racks max. can be operated in parallel (up to 9 units)
Hot swap operation
Protections: Short cirucit/ Overload/ Over voltage / Over temperature
Other Features:
- High power density 10.7w/in3
- Universal AC/ input / full range
- Built-in active PFC function
- Built-in 5V/0.3A standby power
- Forced air cooling by built in DC fan
- Internal OR-ing diode
- Remote control for single unit
- Built-in remote sense function
- AC OK and DC OK signal output
- 3 years warranty
| Wattage | 720 | 960 | 1008 |
|---|---|---|---|
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC |
| Output Current | 0~60A | 0~40A | 0~21A |
| Output Voltage | 12 | 24 | 48 |
| Output Voltage Options | Single | Single | Single |
| DC output adjustment | 11.6 ~ 12.4V | 23.2 ~ 24.8V | 46.3 ~ 49.7V |
| Dimensions | 350.8 x 483.6 x 44 | 350.8 x 483.6 x 44 | 350.8 x 483.6 x 44 |
| Working Temperature | -20~+60°C | ||
| Safety Standards | UL60950-1, TUV EN60950-1 approved | ||
| EMC Standards | EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level, EN61204-3,EN6100-3-2 | ||
