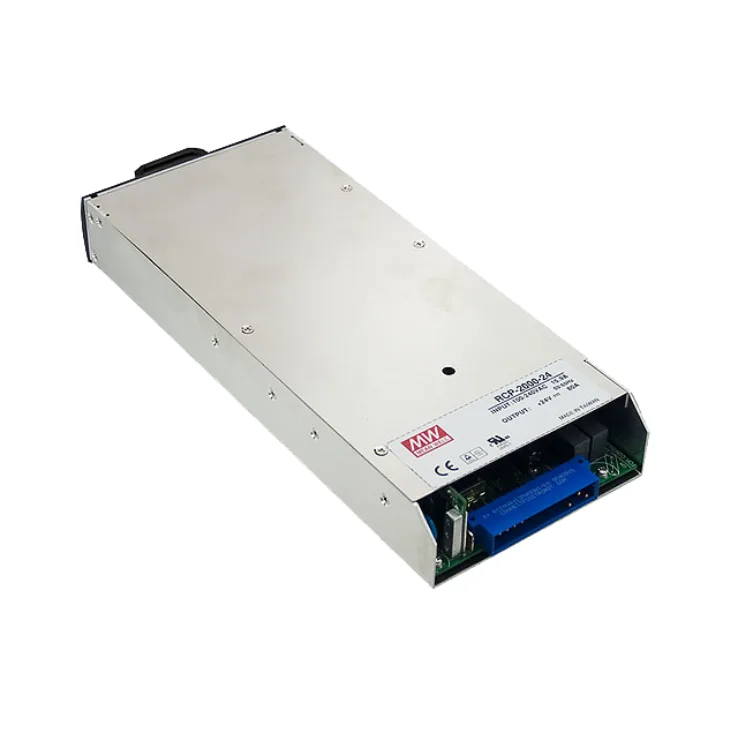

MEAN WELL RCP-2000 Series 19 Inch Rack Power 2000W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | 19 Inch Rack Power |
RCP-2000 Series Features:
Active current sharing up to 6000W (3 units) in one 19" rack, 3 racks max. can be operated in parrallel (up to 9 units)
Protections: Short cirucit / Input under voltage/ Overload/ Over voltage / Over temperature
Other Features:
- High power density 21.4w/in3
- Universal AC/ input / full range
- Withstand 300 VAC surge for 5 seconds
- Built-in active PFC function, PF>0.98
- Built-in 5V/0.3A, 12V/0.8A auxiliary power
- Forced air cooling by built in DC fan
- Internal OR-ing FET
- 1U low profile
- Remote control for single unit
- Built-in remote sense function
- Hot swap operation
- PMBus serial communications
- AC OK and DC OK signal, fan fail, OTP alarm signal
- 3 years warranty
| Wattage | 2000 | 2000 | 2000 |
|---|---|---|---|
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC |
| Output Current | 12V, 0~100A | 24V, 0~80A | 48V, 0~42A |
| Output Voltage | 12 | 24 | 48 |
| Output Voltage Options | Single | Single | Single |
| DC output adjustment | -12%~+15% | -5%~+10% | -12%~+15% |
| Dimensions | 295 x 127 x 41 | 295 x 127 x 41 | 295 x 127 x 41 |
| Working Temperature | -30~+70°C (Refer to "Derating Curve") | ||
| Safety Standards | UL60950-1, TUV EN60950-1 approved | ||
| EMC Standards | EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level, EN61204-3,EN6100-3-2 | ||
