MEAN WELL

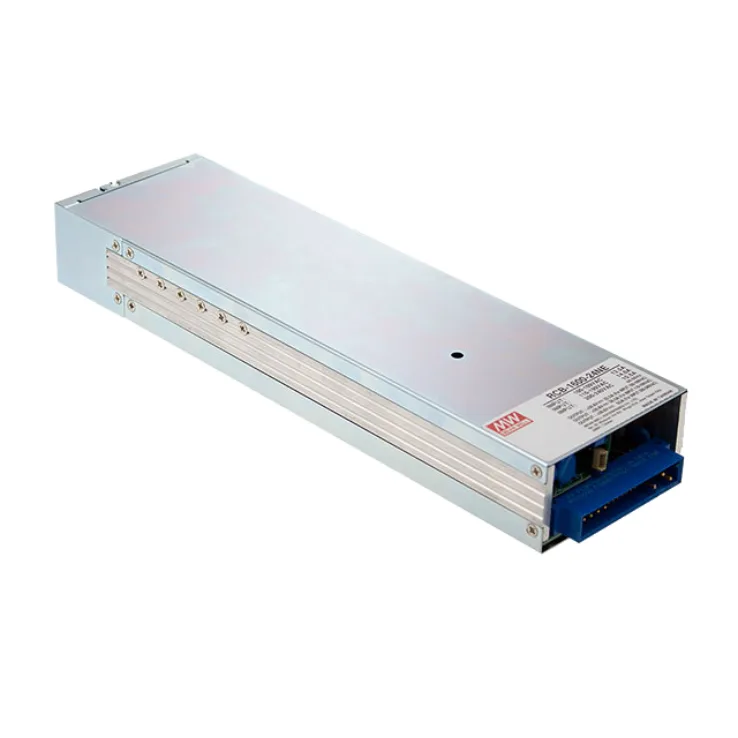

MEAN WELL RCB-1600 Series 19 Inch Rack Power 1440–1584W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | 19 Inch Rack Power |
RCB-1600 Series Features:
Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
Built-in default 3 stage charging curves and programmable curve
Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
Other Features:
- Built-in I2C interface, PMBus protocol
- Universal AC input / Full range (withstand 300VAC surge input for 5 seconds)
- Forced air cooling by built-in DC fan
- Output voltage and current programmable
- Built-in OR-ing FET support hot swap (hot plug)
- Active current sharing up to 8000W for one 19b rack shelf
- Optional conformal coating
- 5 years warranty
| Wattage | 1440 | 1584 | 1584 |
|---|---|---|---|
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC |
| Output Current | 0~100 | 0~55 | 0~27.5 |
| Output Voltage | 12 | 24 | 48 |
| Output Voltage Options | Single | Single | Single |
| DC output adjustment | 11.5-15V | 23.5-30V | 47.5-58.8V |
| Dimensions | 300 x 85 x 41 | 300 x 85 x 41 | 300 x 85 x 41 |
| Working Temperature | -30~+70°C | ||
| Safety Standards | UL60950-1, TUV EN60950-1 approved | ||
| EMC Standards | Compliance to EN55022 (CISPR22) Conduction Class B, Radiation Class A ; EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN500082-2), light industry level, criteria A | ||
