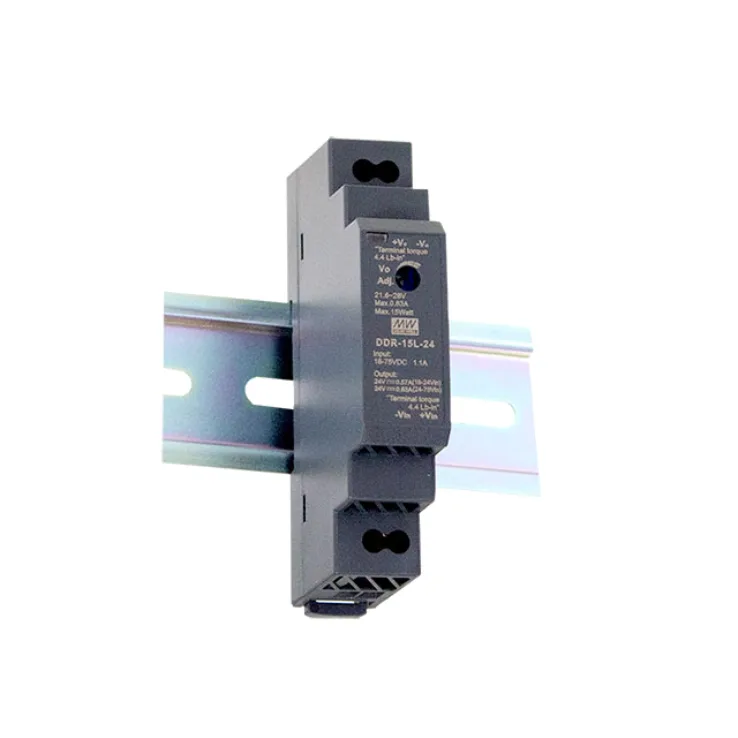

Mean Well DDR-15 Series DIN Rail Power Supplies 11.6–15W

Download Datasheet
Models:
  • DDR-15G-3.3
  • DDR-15G-5
  • DDR-15G-12
  • DDR-15G-15
  • DDR-15G-24
  • DDR-15L-3.3
  • DDR-15L-5
  • DDR-15L-12
  • DDR-15L-15
  • DDR-15L-24
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

DDR-15 Series Features:

>

No minimum load required

Width only 17.5mm (1SU)

Protections: Short circuit / Overload / Over voltage

Other features:

  • 4:1 ultra wide input range
  • DC output adjustable (+10%)
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • 4KVdc I/O isolation (Reinforced isolation)
  • 3 years warranty
Wattage 11.6 15 15 15 15 15 15 15 15 15
Output Current 0-3.5A 0-3A 0-1.25A 0-1A 0-0.63A 0-4.5A 0-3A 0-1.25A 0-1A 0-0.63A
Output Voltage 3.3 5 12 15 24 3.3 5 12 15 24
Output Voltage Options Single Single Single Single Single Single Single Single Single Single
DC output adjustment 3-3.6V 4.5-5.5V 9-13.2V 13.5-16.5V 21.6-28V 3-3.6V 4.5-5.5V 9-13.2V 13.5-16.5V 26.1-28V
Dimensions 17.5x 90x 54.5 17.5x 90x 54.5 17.5x 90x 54.5 17.5x 90x 54.5 17.5x 90x 54.5 17.5x 90x 54.5 17.5x 90x 54.5 17.5x 90x 54.5 17.5x 90x 54.5 17.5x 90x 54.5
Working Temperature -40-+85°C
Safety Standards IEC 62368-1 (LVD) approved, Design refer to UL508
EMC Standards Compliance to EN55032, EN61000-3-3. Compliance to EN55024, EN61000-6-2 (EN50082-2), EN61000-4-2,3,4,5,6,8
