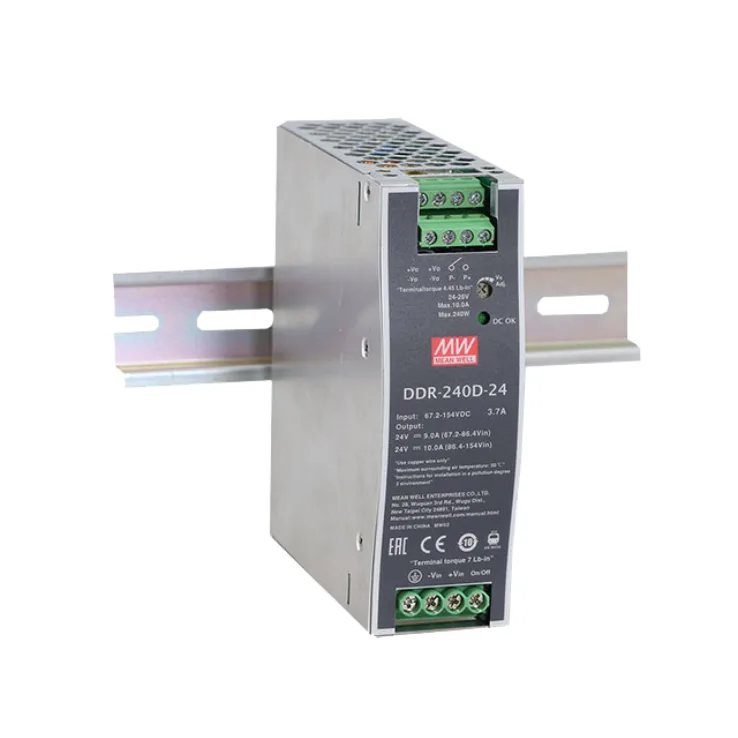

MEAN WELL DDR-240 Series DIN Rail Power Supplies 240W

DDR-240 Series Features:

Can be installed on DIN rail TS-35/7.5 or 15

Protections: Short circuit/ Overload/ Over voltage/ Over temperature/ Input reverse polarity/ Input under voltage protection

Other features:

Spec	DDR-240B-24	DDR-240B-48	DDR-240C-24	DDR-240C-48	DDR-240D-24	DDR-240D-48
Wattage	240	240	240	240	240	240
Output Current	0-10A	0-5A	0-10A	0-5A	0-10A	0-5A
Output Voltage	24	48	24	48	24	48
Output Voltage Options	Single	Single	Single	Single	Single	Single
DC output adjustment	24-28V	48-56V	24-28V	48-56V	24-28V	48-56V
Dimensions	40x 125.2x 113.5	40x 125.2x 113.5	40x 125.2x 113.5	40x 125.2x 113.5	40x 125.2x 113.5	40x 125.2x 113.5
Working Temperature	-40-+70°C
Safety Standards	IEC 62368-1 (LVD, except for 67.2-154VIN) approved, EAC TP TC 004 approved; Design refer to UL508
EMC Standards	Compliance to EN55032, EN61000-3-3. Compliance to EN55024, EN61000-6-2 (EN50082-2), EN61000-4-2,3,4,5,6,8. Compliance to EN45545-2 for fire protection ; Meet EN50155 / IEC60571 including IEC61373 for shock & vibration EN50121-3-2 for EMC
