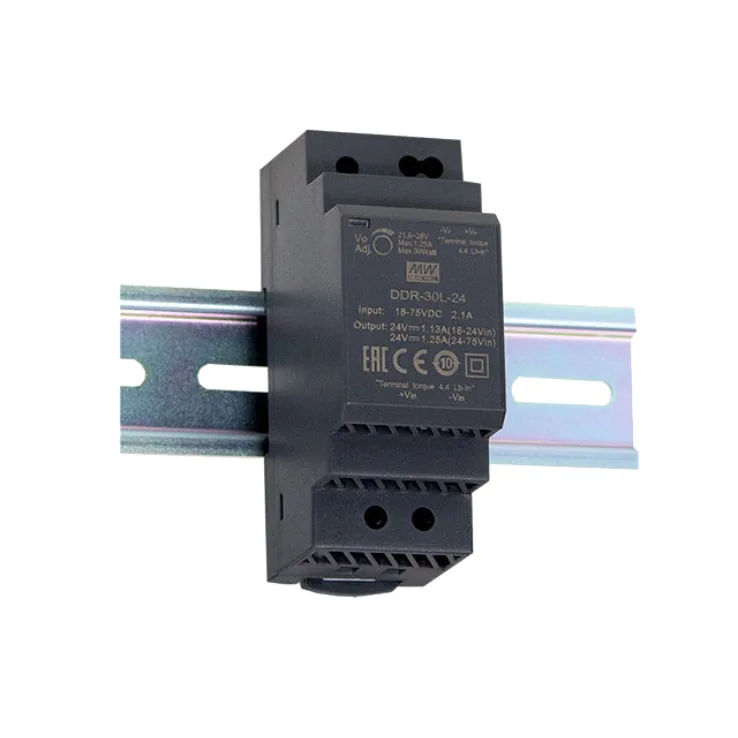

Mean Well DDR-30 Series DIN Rail Power Supplies 30W

Download Datasheet
Models:
  • DDR-30G-5
  • DDR-30G-12
  • DDR-30G-15
  • DDR-30G-24
  • DDR-30L-5
  • DDR-30L-12
  • DDR-30L-15
  • DDR-30L-24
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

DDR-30 Series Features:

>

No minimum load required

Width only 35mm (1SU)

Protections: Short circuit / Overload / Over voltage

Other features:

  • 4:1 ultra wide input range
  • DC output adjustable (+10%)
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • 4KVdc I/O isolation (Reinforced isolation)
  • 3 years warranty
Wattage 30 30 30 30 30 30 30 30
Output Current 0-6A 0-2.5A 0-2A 0-1.25A 0-6A 0-2.5A 0-2A 0-1.25A
Output Voltage 5 12 15 24 5 12 15 24
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment 4.5-5.5V 9-13.2V 13.5-16.5V 21.6-28V 4.5-5.5V 9-13.2V 13.5-16.5V 21.6-28V
Dimensions 35x 90x 54.5 35x 90x 54.5 35x 90x 54.5 35x 90x 54.5 35x 90x 54.5 35x 90x 54.5 35x 90x 54.5 35x 90x 54.5
Working Temperature -40-+85°C
Safety Standards IEC 62368-1 (LVD) approved, Design refer to UL508
EMC Standards Compliance to EN55032, EN61000-3-3. Compliance to EN55024, EN61000-6-2 (EN50082-2), EN61000-4-2,3,4,5,6,8
