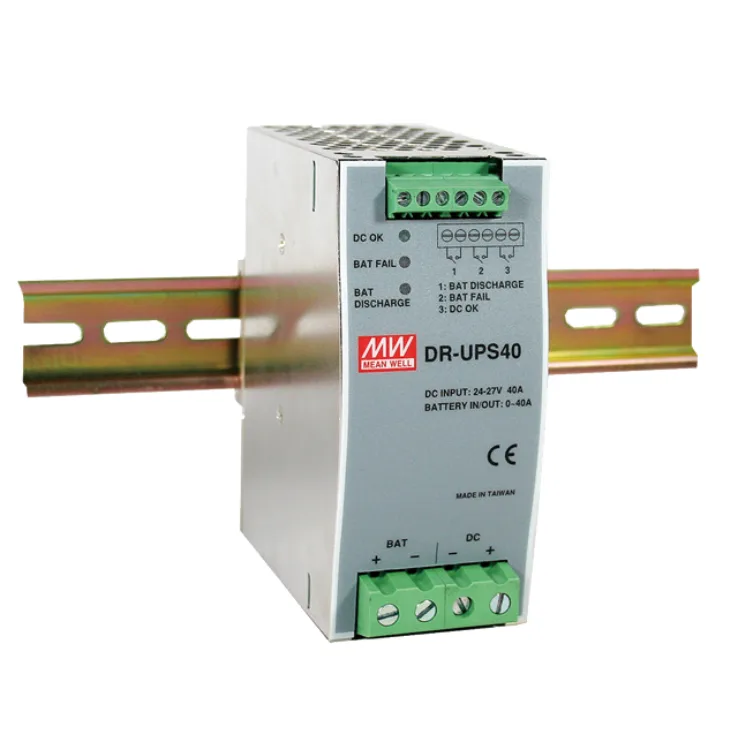

Mean Well DR-UPS40 DIN Rail Power Supplies

Download Datasheet
Models:
  • DR-UPS40
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

DR-UPS40 Features:

Built-in battery test function

Battery controller for DIN Rail UPS system

Other features:
  • Parallel connection to DC BUS
  • Suitable for 24V system up to 40A
  • Installed on DIN Rail TS35 / 7.5 or 15
  • Battery polarity protection
  • Relay contact signal output and LED indicator for DC BUS OK,
  • Battery Fail, and Battery Discharge
  • Cooling by free air convection
  • 3 years warranty
Working Temperature -20 ~ +70ÂșC
Safety Standards Terminal-Chassis :0.5KVAC, Relay Contacts-Terminal :0.5KVAC
EMC Standards Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, Compliance to EN61000-4-2,3,4,5,6,8 , heavy industry level, criteria A
