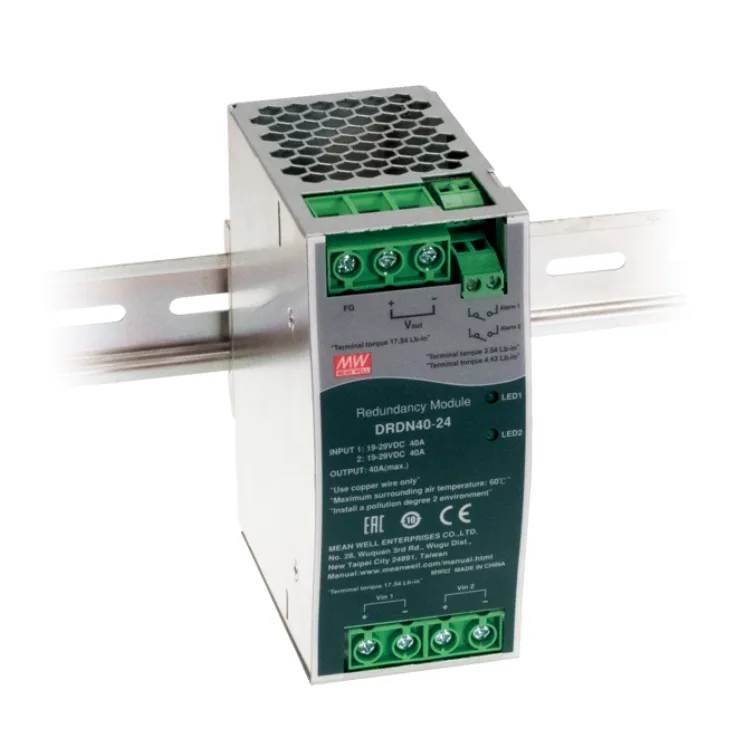

MEAN WELL DRDN40 Series DIN Rail Power Supplies 0W

Download Datasheet
Models:
  • DRDN40-12
  • DRDN40-24
  • DRDN40-48
Manufacturer: MEAN WELL
Type: DIN Rail Power Supplies

DRDN40 Series Features:

Support 1+1 and N+1 redundancy system

2 channels input and 1 output

Other features:

  • Suitable for redundancy operation of 12V/24V/48 system
  • Output current up to 40A
  • Cooling by free air convection
  • -40~+80 ultra-wide operating temperature (+60 derating)
  • 55 mm slim width
  • Built-in 2 channels DC OK signal and alarm relay contact
  • Installed on DIN Rail TS35/7.5 or 15
  • 3 years warranty
Wattage 0 0 0
Input Voltage 12V 24V 48V
Output Current 0-40A 0-40A 0-40A
Output Voltage 12 24 48
Output Voltage Options Single Single Single
DC output adjustment 0-40A 0-40A 0-40A
Dimensions 55 x 125.2 x 100 55 x 125.2 x 100 55 x 125.2 x 100
Working Temperature -40 - +85°C
Safety Standards IEC62368-1, UL62368-1,approved EAC TP TC 004
EMC Standards EN55032(CISPR32), EN61000-4-2,3,4,5,6,8
