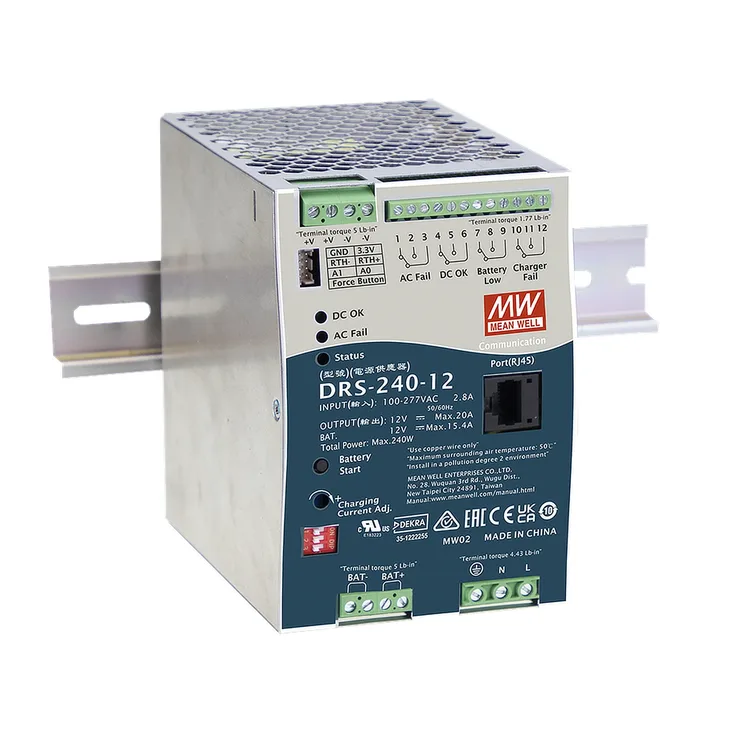

MEAN WELL DRS-240 Series DIN Rail Power Supplies 240W

Download Datasheet
Models:
  • DRS-240-12
  • DRS-240-24
  • DRS-240-36
  • DRS-240-48
Manufacturer: MEAN WELL
Type: DIN Rail Power Supplies

DRS-240 Series Features:

DRS-240 is a 240W AC/DC DIN RAIL type security power supply series.

Features:

  • Universal input 90~305VAC
  • All-in-one function with Power supply, DC-UPS, battery charger and status monitoring in ONE compact unit
  • Signal and alarms design meet UL2524, NFPA 1221, BS EN/EN54-4 and GB17945 requirement, with adjustable parameters configurable by communication interface
  • Form C relay contacts and LED indicators for AC Fail, Battery Lo, Charger Fail and DC-OK
  • Load-dependent high speed battery charging
  • Built-in MODBus protocol, CANBus optional
  • Protections: Short circuit/ Overload/ Over voltage/ Over temperature (auto derating)/ Battery reverse polarity )No damage)/ Battery cut off
  • Battery low protection/ Battery reverse polarity protection
  • -30~70°C wide operating temperature
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • Charging curve can be set with SBP-001
  • 20~100% Charging current adjustable by VR
  • 2 or 3-stage selectable by DIP S.W
  • Suitable for lead acid and lithium-ion batteries
  • 3 years warranty
Wattage 240 240 240 240
Input Voltage 90~305VAC 90~305 VAC 90~305VAC 90~305VAC
Output Current 15.4 7.7 5.1 3.85
Output Voltage 12 24 36 48
Dimensions 85.5x125.2x129.2mm 85.5x125.2x129.2mm 85.5x125.2x129.2mm 85.5x125.2x129.2mm
Working Temperature -30~70°C
Safety Standards UL62368-1, Dekra BS EN/EN62368-1, RCM AS/NE62368-1 approved; EAC TP TC 004 pending
EMC Standards BS EN/EN55032(CISPR32), BS EN/EN61000-3-2
