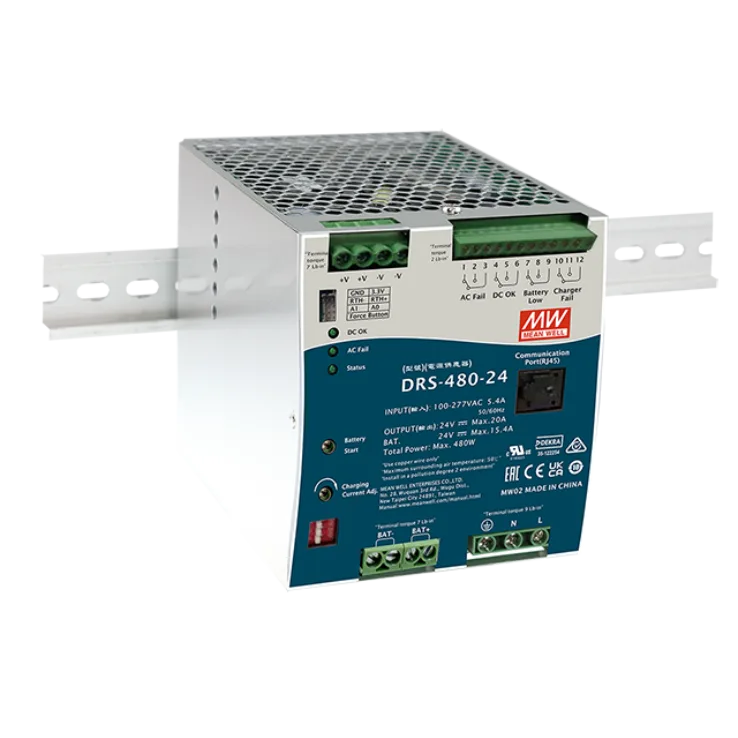

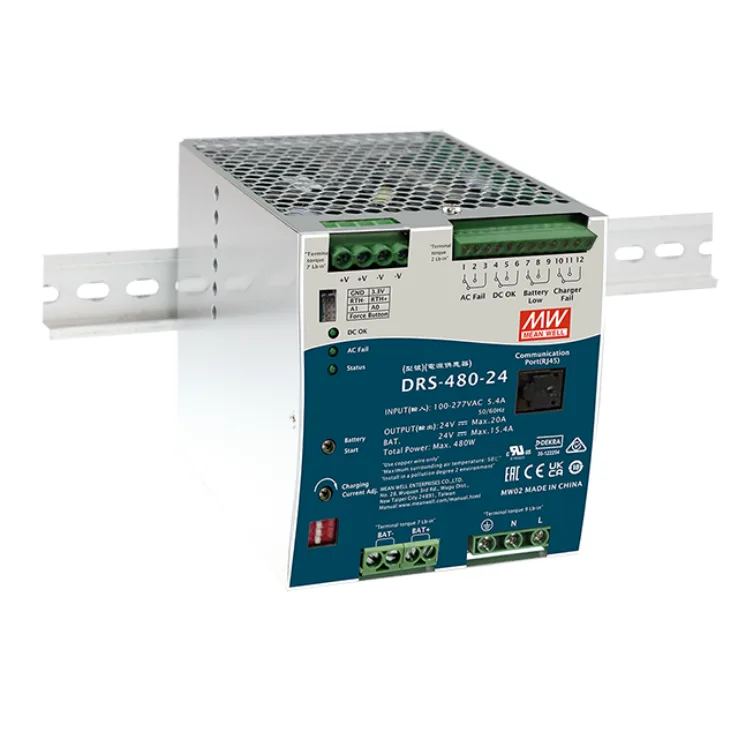

MEAN WELL DRS-480 Series DIN Rail Power Supplies 480W

DRS-480 Series Features:

DRS-480 is a 480W AC/DC DIN RAIL type security power supply series.

Features:

Universal input 90~305VAC
All-in-one function with Power supply, DC-UPS, battery charger and status monitoring in ONE compact unit
Signal and alarms design meet UL2524, NFPA 1221, BS EN/EN54-4 and GB17945 requirement, with adjustable parameters configurable by communication interface
Form C relay contacts and LED indicators for AC Fail, Battery Lo, Charger Fail and DC-OK
Load-dependent high speed battery charging
Built-in MODBus protocol, CANBus optional
Protections: Short circuit/ Overload/ Over voltage/ Over temperature (auto derating)/ Battery reverse polarity )No damage)/ Battery cut off
Battery low protection/ Battery reverse polarity protection
-30~70°C wide operating temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Charging curve can be set with SBP-001
20~100% Charging current adjustable by VR
2 or 3-stage selectable by DIP S.W
Suitable for lead acid and lithium-ion batteries
3 years warranty

Spec	DRS-480-24	DRS-480-36	DRS-480-48
Wattage	480	480	480
Input Voltage	90~305VAC	90~305VAC	90~305VAC
Output Current	15.4	7.7	7.7
Output Voltage	24	36	48
Dimensions	110x125.2x150.7mm	110x125.2x150.7mm	110x125.2x150.7mm
Working Temperature	-30~70°C
Safety Standards	UL62368-1, Dekra BS EN/EN62368-1, RCM AS/NE62368.1 approve; EAC TP TC 004pending
EMC Standards	BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8
