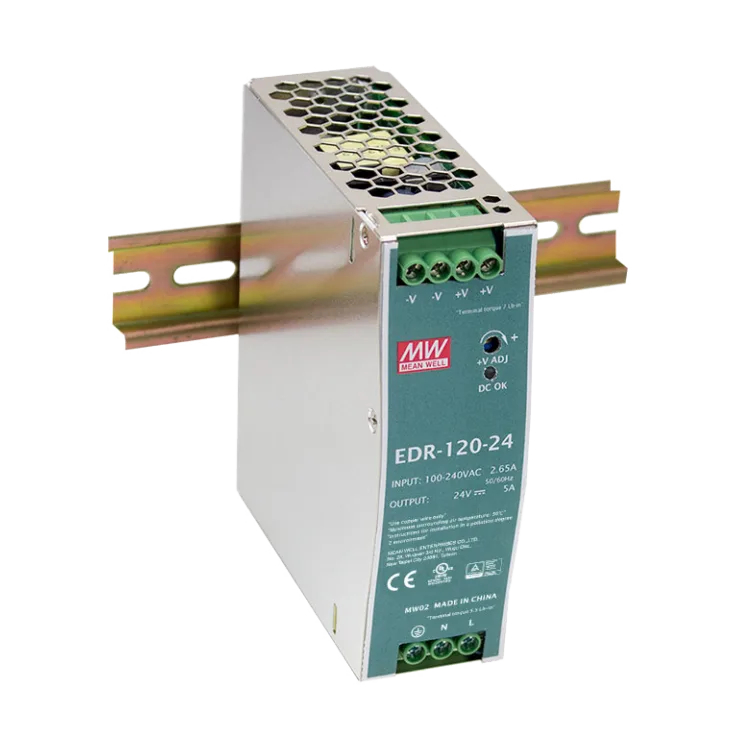

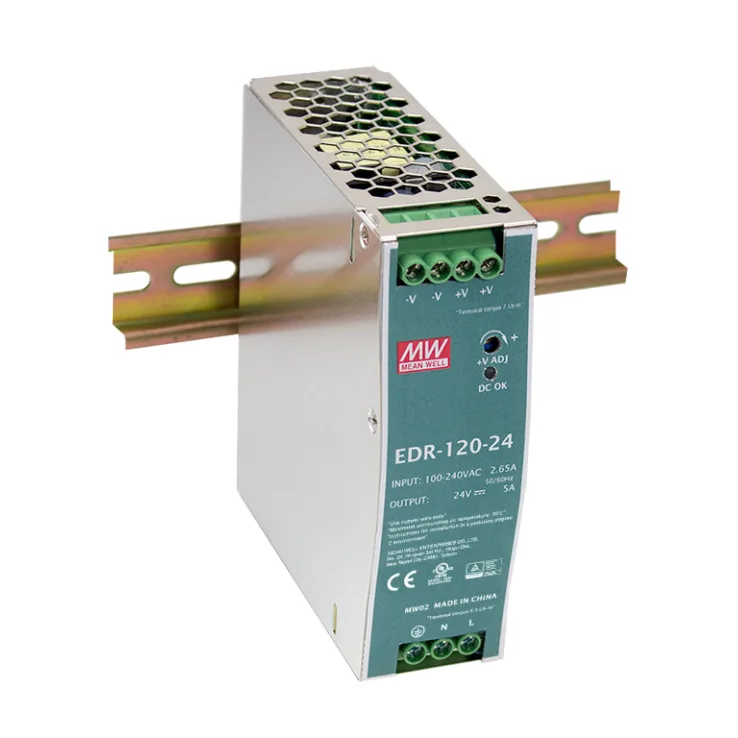

MEAN WELL EDR-120 Series DIN Rail Power Supplies 120W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DIN Rail Power Supplies |
EDR-120 Series Features:
EDR-120 is one economical slim 120W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails.
Features:
- Universal AC input/Full range
- Protections: Short circuit/ Overload/ Over voltage/ Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
- 2 years warranty
| Wattage | 120 | 120 | 120 |
|---|---|---|---|
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC |
| Output Current | 10A | 5A | 2.5A |
| Output Voltage | 12V | 24V | 48V |
| Output Voltage Options | 12~14V | 24~28V | 48~55V |
| Dimensions | 40*125.2*113.5mm | 40*125.2*113.5mm | 40*125.2*113.5mm |
| Working Temperature | -20~65°C | ||
| Safety Standards | UL508, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336-1approved;(meet EN60204-1) | ||
| EMC Standards | Compliance to EN55032 (CISPR32) Class A, EN6...-3-2,-3, EAC TP TC 020, CNS13438 Class A | ||
