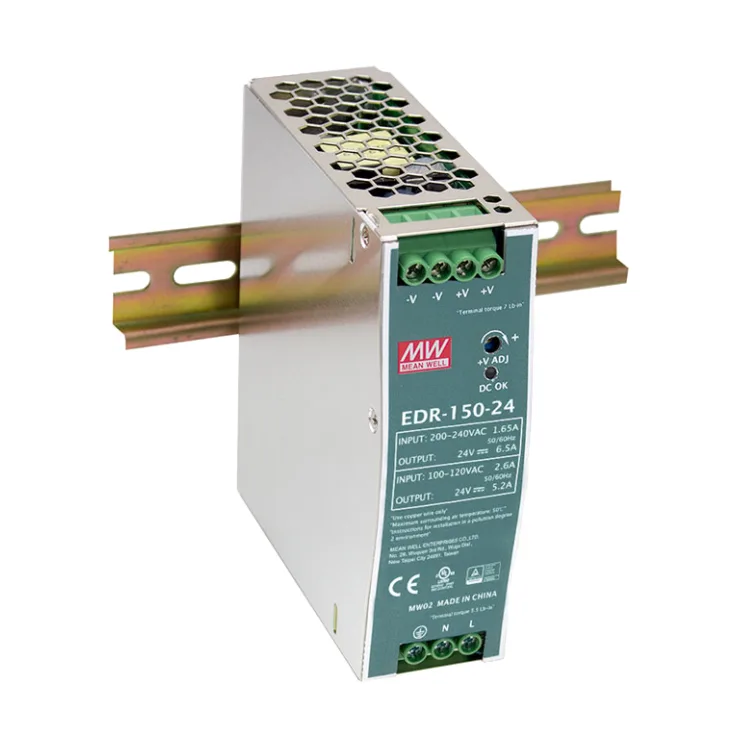

Mean Well EDR-150 Series DIN Rail Power Supplies

Download Datasheet
Models:
  • EDR-150-24
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

EDR-150 Series Features:

al AC input/ Full range

Can be installed on DIN rail TS-35/7.5 or 15

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Other features:

  • Cooling by free air convection
  • UL508 (industrial control equipment) approved
  • EN61000-6-2 (EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • 2 years warranty
Wattage 150
Input Voltage 90-264VAC
Output Current 6.5A
Output Voltage 24
Output Voltage Options Single
DC output adjustment 24-28V
Dimensions 40x 125.2x 113.5
Working Temperature -20-+60°C
Safety Standards UL508, TUV EN60950-1 approved; (meet EN60204-1)
EMC Standards Compliance to EN55032 (CISPR32) Class A, EN61000-3-2,Class A EN61000-3-2, Class A (<80% Load) EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), Heavy industry level, criteria A
