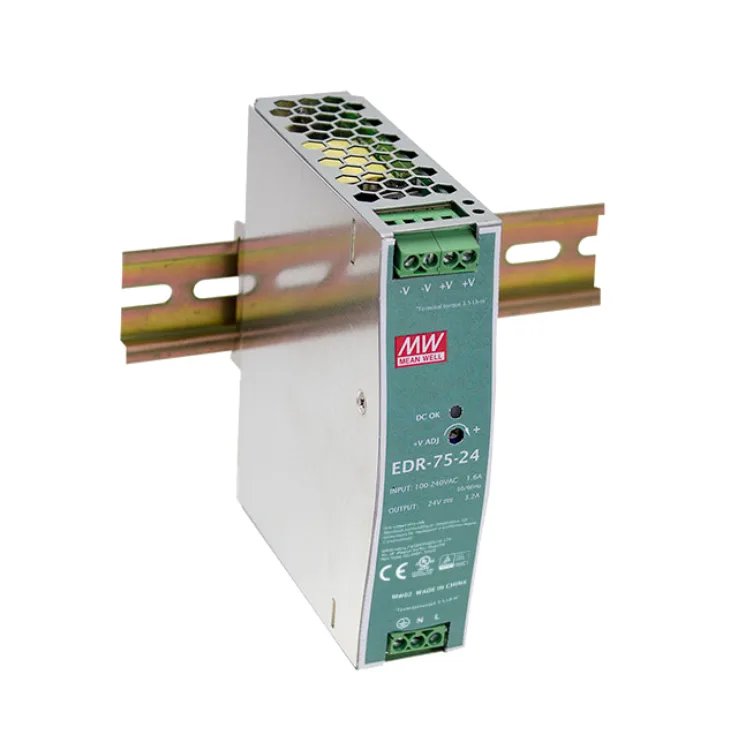

Mean Well EDR-75 Series DIN Rail Power Supplies 75W

Download Datasheet
Models:
  • EDR-75-12
  • EDR-75-24
  • EDR-75-48
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

EDR-75 Series Features:

al AC input/ Full range

Can be installed on DIN rail TS-35/7.5 or 15

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Other features:

  • Cooling by free air convection
  • UL508 (industrial control equipment) approved
  • EN61000-6-2 (EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • 2 years warranty
Wattage 75 75 75
Input Voltage 90 - 264VAC 127-370 VDC (DC input operation possible by connecting AC/L(+), AC/N(-)) 90 - 264VAC 127-370 VDC (DC input operation possible by connecting AC/L(+), AC/N(-)) 90 - 264VAC 127-370 VDC (DC input operation possible by connecting AC/L(+), AC/N(-))
Output Current 0 - 6.3 3.2 1.6
Output Voltage 12 24 48
Output Voltage Options Single Single Single
DC output adjustment 12-14VDC 24-28VDC 48-55V
Dimensions 32x125.2x102 32x125.2x102 32x125.2x102
Working Temperature -20~+60°C (refer to output derating curve)
Safety Standards UL508, TUV EN60950-1 approved
EMC Standards Complience to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3 Complience to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, Heavy industry level, criteria A
