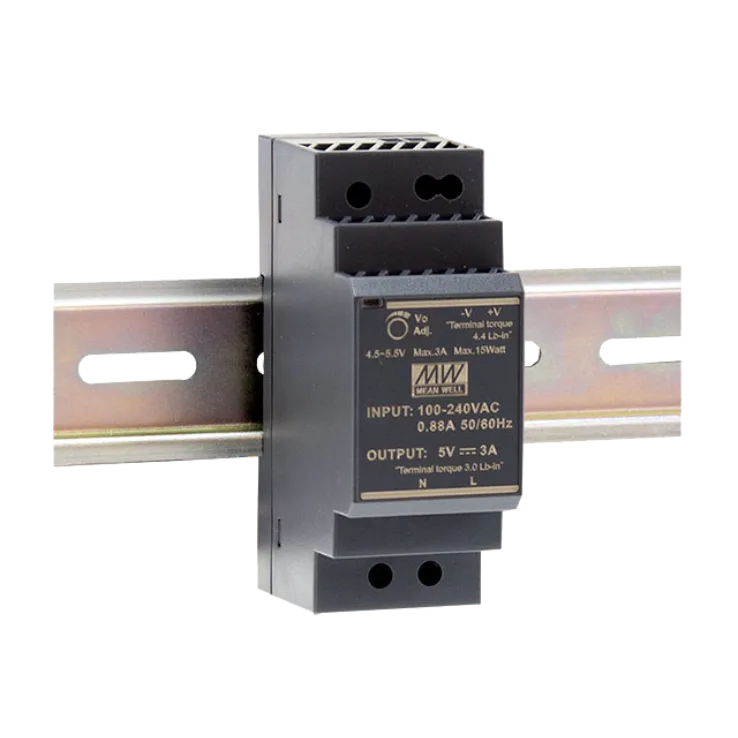

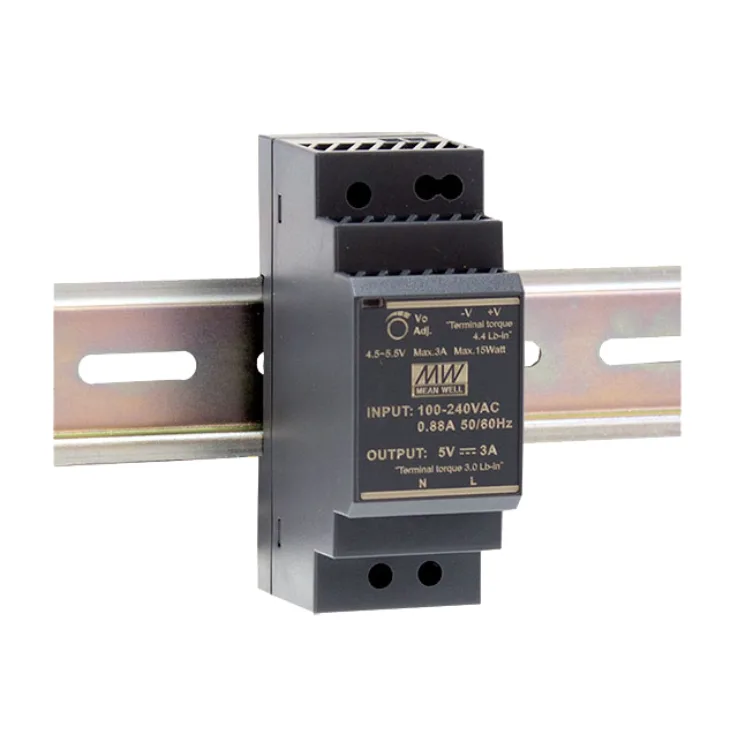

Mean Well HDR-30 Series DIN Rail Power Supplies 15–36W

Download Datasheet
Models:
  • HDR-30-5
  • HDR-30-12
  • HDR-30-15
  • HDR-30-24
  • HDR-30-48
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

HDR-30 Series Features:

Ultra slim design with 17.5mm (1SU) width

DC output voltage adjustable

No load power consumption <0.3W

Protections: Short circuit/ Overload/ Over voltage

Other features:

  • Universal input 85-264VAC (277VAC available)
  • Isolation class II
  • Pass LPS (Limited power source)
  • Cooling by free air convection
  • Din rail TS-35/7.5 or 15 mountable
  • LED indicator for power on
  • 3 year warranty
Wattage 15 24 30 36 36
Input Voltage 85-264VAC 85-264VAC 85-264VAC 85-264VAC 85-264VAC
Output Current 3A 2A 2A 1.5A 0.75A
Output Voltage 5 12 15 24 48
Output Voltage Options Single Single Single Single Single
DC output adjustment 4.5-5.5V 10.8-13.8V 13.5-18V 21.6-29V 43.2-55.2V
Dimensions 35x 90x 54.5 35x 90x 54.5 35x 90x 54.5 35x 90x 54.5 35x 90x 54.5
Working Temperature -30-+70°C
Safety Standards UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to EN50178, TUV EN60950-1
EMC Standards Compliance to EN55022, EN61204-3 Class B, EN61000-3-2,-3, Compliance to EN61000-4,-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy Industry level, criteria A
