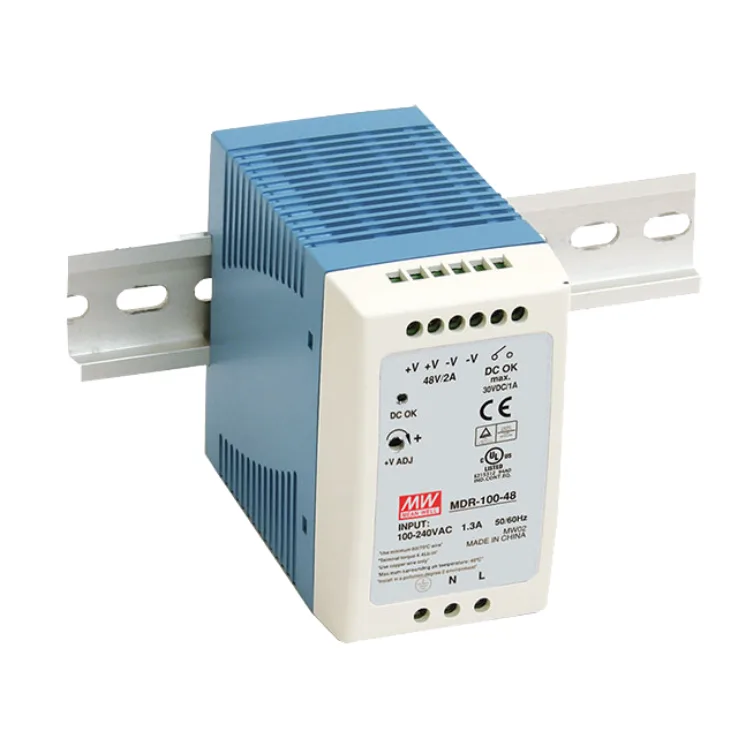

Mean Well MDR-100 Series DIN Rail Power Supplies 90–96W

Download Datasheet
Models:
  • MDR-100-12
  • MDR-100-24
  • MDR-100-48
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

MDR-100 Series Features:

No load power consumption <1W

Built-in active PFC

Protections: Short circuit / Overload / Over voltage/ Over temp.

  • Universal AC input / full range
  • Installed on DIN rail TS35 / 7.5 or 15
  • LED indicator for power on
  • DC OK relay contact
  • Cooling by free air convection
  • 100% full load burn-in test
  • 3 years warranty
Wattage 90 96 96
Input Voltage 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC
Output Current 0~0.84 0~4.0 0~2.0
Output Voltage 12 24 48
Output Voltage Options Single Single Single
DC output adjustment 12~15V 24~30V 48~56V
Dimensions 55 x 90 x 100 55 x 90 x 100 55 x 90 x 100
Working Temperature 0~+65°C
Safety Standards UL508, TUV EN60950-1, approved
EMC Standards EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11,EN61204-3 , EN61000-6-2 heavy industry level
