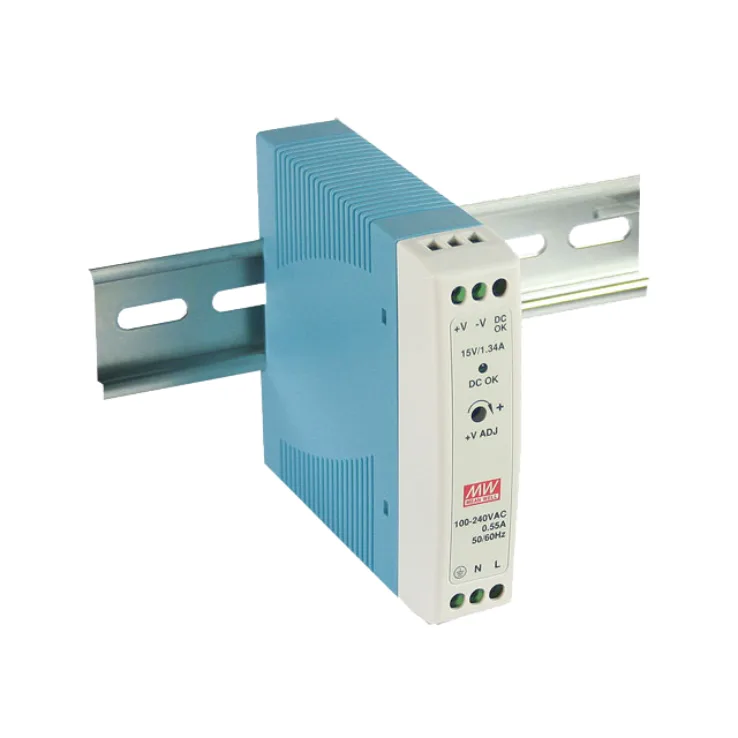

Mean Well MDR-20 Series DIN Rail Power Supplies 15–24W

Download Datasheet
Models:
  • MDR-20-5
  • MDR-20-12
  • MDR-20-15
  • MDR-20-24
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

MDR-20 Series Features:

No load power consumption <0.75W

Installed on DIN rail TS35 / 7.5 or 15

Protections: Short circuit / Overload / Over voltage

  • Universal AC input / full range
  • LED indicator for power on
  • NEC class 2 / LPS complaint
  • DC OK signal output
  • Cooling by free air convection
  • 100% full load burn-in test
  • 3 years warranty
Wattage 15 20 20 24
Input Voltage 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC
Output Current 0~3.0 0~1.67 0~1.34 0~1.00
Output Voltage 5 12 15 24
Output Voltage Options Single Single Single Single
DC output adjustment 4.75~5.5V 10.8~13.2V 13.5~16.5V 21.6~26.4V
Dimensions 22.5 x 90 x 100 22.5 x 90 x 100 22.5 x 90 x 100 22.5 x 90 x 100
Working Temperature 0~+65°C
Safety Standards UL508, TUV EN60950-1, approved, NEC class 2 compliant
EMC Standards EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11,EN61204-3
