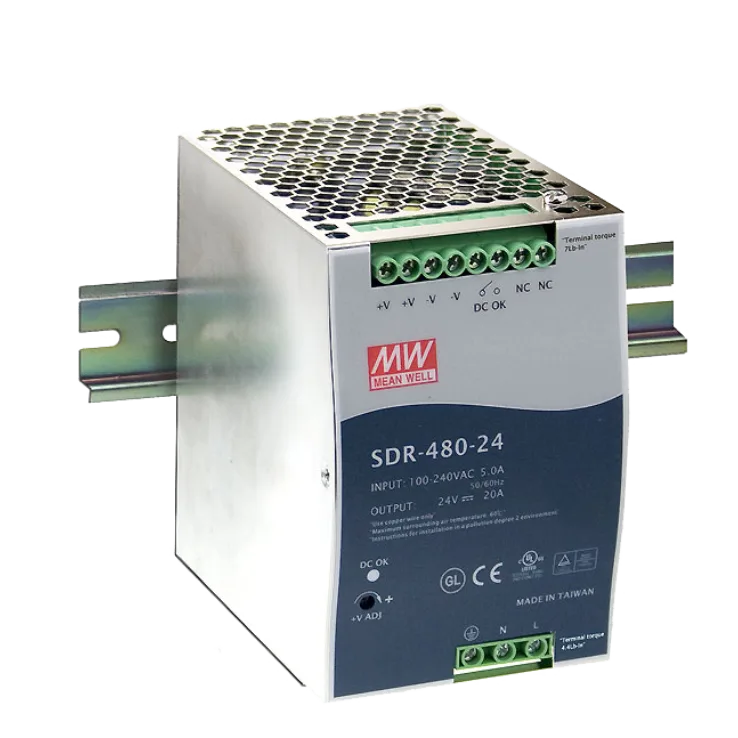

Mean Well SDR-480 Series DIN Rail Power Supplies 480W

Download Datasheet
Models:
  • SDR-480-24
  • SDR-480-48
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

SDR-480 Series Features:

Built-in active PFC function, PF>0.93

High efficiency up to 94%

Protections: Short circuit / Overload / Over voltage / Over temperature

Other features:

  • Universal AC input / Full range
  • Can be installed on DIN rail TS-35 / 7.5 or 15
  • Cooling by free air convection
  • UL508(industrial control equipment) approved
  • EN6100-2( EN50082-2) industrial immunity level
  • Built-in DC OK relay contact
  • 150% peak load capacity
  • Comply with GL and SEMI f47
  • 3 years warranty
Wattage 480 480
Input Voltage 90~264VAC, 127~370VDC 88~264VAC, 124~370VDC
Output Current 0~10 0~10
Output Voltage 24 48
Output Voltage Options Single Single
DC output adjustment 24-28V 48-55V
Dimensions 85.5 x 125.2 x 128.5 85.5 x 125.2 x 128.5
Working Temperature -25~+70°C
Safety Standards UL508, TUV EN60950-1, GL approved
EMC Standards Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3, Heavy industry level, SEMI F47, GL
