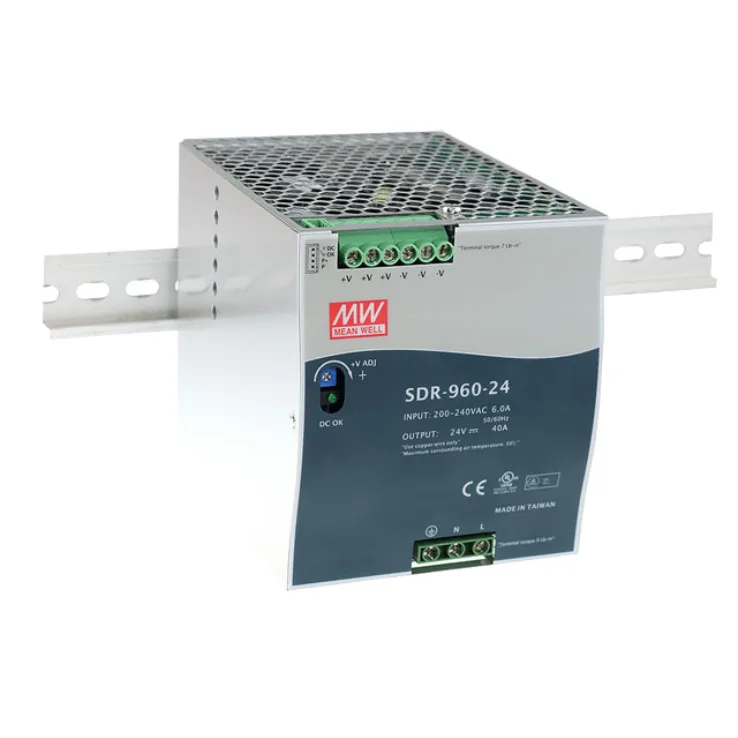

Mean Well SDR-960 Series DIN Rail Power Supplies 960W

Download Datasheet
Models:
  • SDR-960-24
  • SDR-960-48
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

SDR-960 Series Features:

Width only 110mm

Built-in active PFC function compliance to EN61000-3-2

Protections: Short circuit / Overload / Over voltage / Over temperature

Other features:

  • AC input 180~264VAC
  • 130% peak load capability
  • High efficiency 94% and low power dissipation
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL508(industrial control equipment)approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • Current sharing up to 3840W(3+1)
  • Built-in DC OK relay contact
  • 100% full load burn-in test
  • 3 years warranty
Wattage 960 960
Input Voltage 180~264VAC 254~370VDC 180~264VAC 254~370VDC
Output Current 0~40 0~20
Output Voltage 24 48
Output Voltage Options Single Single
DC output adjustment 24~28V 48 ~ 55V
Dimensions 110x 125.2x 150 110x 125.2x 150
Working Temperature -25~+70°C
Safety Standards UL508, UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22), EN61204-3 , EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A
