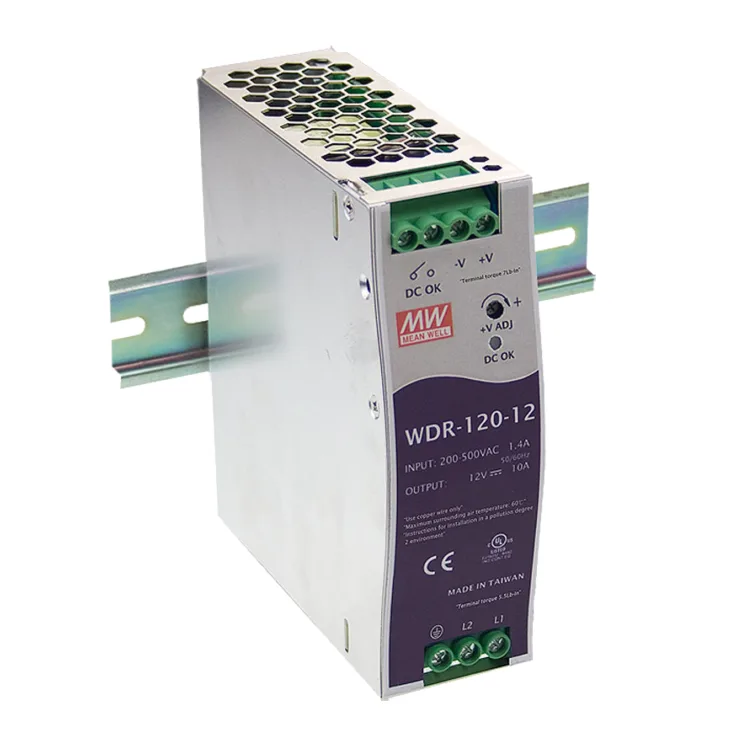

Mean Well WDR-120 Series DIN Rail Power Supplies 120W

Download Datasheet
Models:
  • WDR-120-12
  • WDR-120-24
  • WDR-120-48
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

WDR-120 Series Features:

Single and two phase wide input range 180-550VAC

Cooling by free air convection

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Other features:

  • Can be installed on DIN rail TS-35 / 7.5 or 15
  • Built-in constant current limiting circuit
  • UL508(industrial control equipment) approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • Built-in DC OK relay contact
  • 100% full load burn-in test
  • 3 year warranty
Wattage 120 120 120
Input Voltage 180~550VAC(single and two phase): 254~780VDC 85-264VAC 85-264VAC
Output Current 0~10A 0~5.0 0~2.5
Output Voltage 12 24 48
Output Voltage Options Single Single Single
DC output adjustment 12~15V 24~28V 48~53V
Dimensions 40 x 125.2 x 113.5 40 x 125.2 x 113.5 40 x 125.2 x 113.5
Working Temperature -10~+60°C
Safety Standards UL508 approved : IEC60950-1 CB approved by SIQ: Design refer to GL UL508, TUV EN60950-1, approved
EMC Standards Compliance to EN55011(CISPR11), EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11,EN61204-3 , EN61000-6-2 heavy industry level
