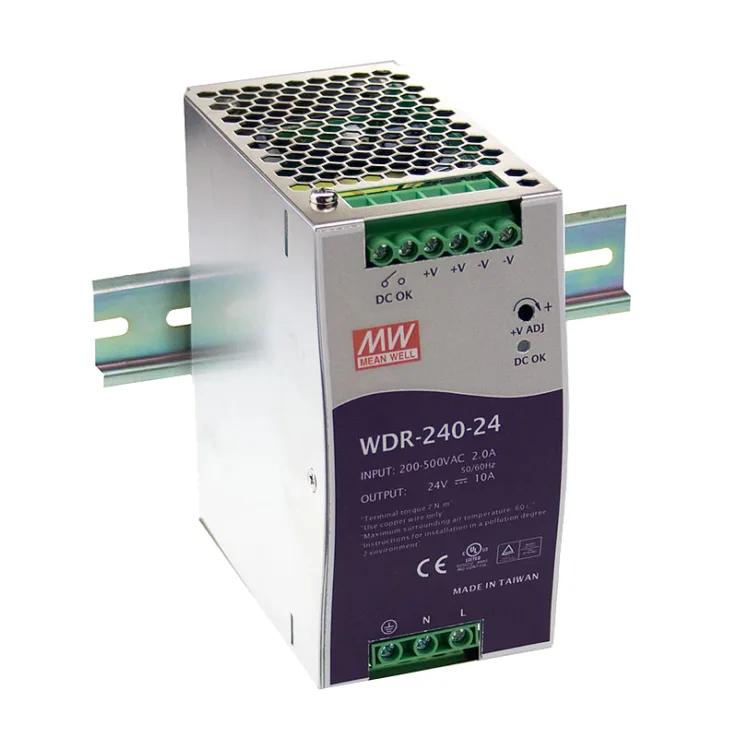

MEAN WELL WDR-240 Series DIN Rail Power Supplies 240W

WDR-240 Series Features:

Single and two phase wide input range 180~550VAC

Built-in active PFC

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Other features:

Spec	WDR-240-24	WDR-240-48
Wattage	240	240
Input Voltage	180~550VAC(single and two phase); 254~780VDC	180~550VAC(single and two phase); 254~780VDC
Output Current	0~10	0~5.0
Output Voltage	24	48
Output Voltage Options	Single	Single
DC output adjustment	24~28	48~55V
Dimensions	63x 125.2x 113.5	63x 125.2x 113.5
Working Temperature	-30~+70°C (refer to output derating curve)
Safety Standards	UL508, IEC60950-1 CB approved by SIQ; Design refer to GL
EMC Standards	Compliance to EN55011(CISPR11), EN55022 Class B, EN61000-4-2,3,4,5,6,8,11,EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level
