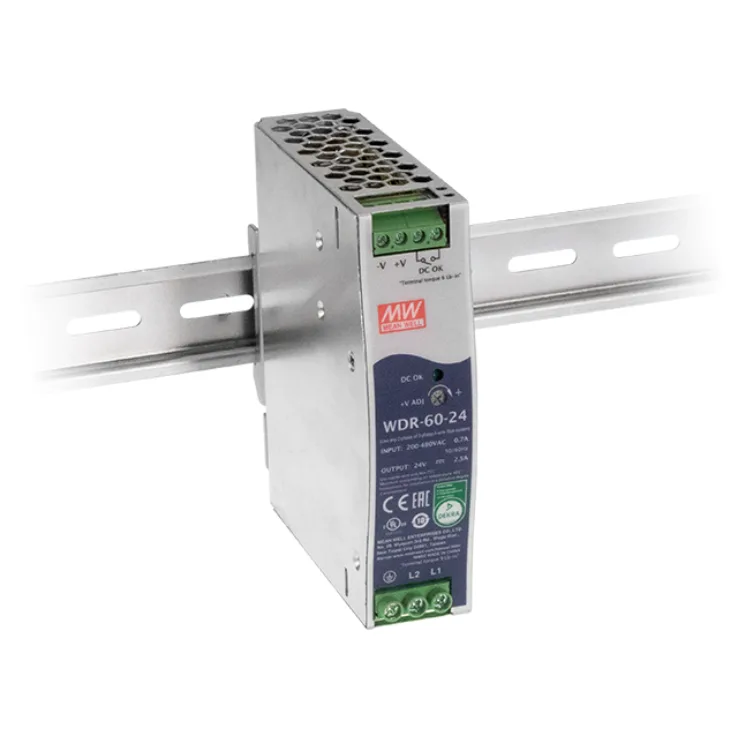

Mean Well WDR-60 Series DIN Rail Power Supplies 60W

Download Datasheet
Models:
  • WDR-60-5
  • WDR-60-12
  • WDR-60-24
  • WDR-60-48
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

WDR-60 Series Features:

180-550Vac ultra wide input for 1-phase or 2-phase

32mm slim width

Other features:

  • 4.7KVac I/O high isolation(Reinforced isolation)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • Over voltage category III
  • DC OK relay contact
  • 3 years warranty
Wattage 60 60 60 60
Input Voltage 180-550VAC, 254-780VDC 180-550VAC, 254-780VDC 180-550VAC, 254-780VDC 180-550VAC, 254-780VDC
Output Current 10A 5A 2.5A 1.25A
Output Voltage 5 12 24 48
Output Voltage Options Single Single Single Single
DC output adjustment 5-6V 12-15V 24-29V 48-57V
Dimensions 32 x 125.5 x 102 32 x 125.5 x 102 32 x 125.5 x 102 32 x 125.5 x 102
Working Temperature -30 - +85C
Safety Standards UL61010 EN61558-2-16, EAC TP TC 004 approved; design refer to GL,and EN60204-1(By request)
EMC Standards EN55032(CISPR32), EN61000-3-2,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
