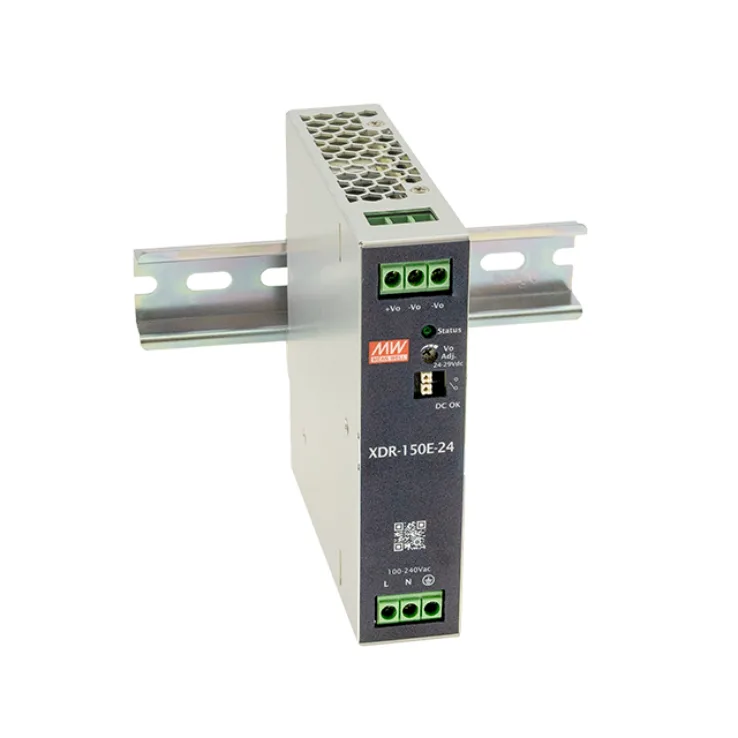

MEAN WELL XDR-150E DIN Rail Power Supplies 132–156W

Download Datasheet
Models:
  • XDR-150E-12
  • XDR-150E-24
  • XDR-150E-36
  • XDR-150E-48
Manufacturer: MEAN WELL
Type: DIN Rail Power Supplies

XDR-150E Features:

The XDR-150E series is a 150W AC/DC economical ultra slim industrial DIN rail power supply

Features:

  • 85~264Vac input range
  • 30mm slim width
  • High efficiency up to 91.5% and low power dissipation <1W
  • Built-in constant current limiting circuit
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Fanless design, cooling by free air convection
  • Over voltage category III (OVC III)
  • -40~+70C wide range operation temperature (>+50C derating)
  • Operating altitude up to 5000 meters
  • Built-in DC OK relay contact
  • Can be installed on DIN rail TS-35/7.5 or 15
  • 3 years warranty
Wattage 132 156 156 156
Input Voltage 85~264Vac 85~264Vac 85~264Vac 85~264Vac
Output Current 11A 6.5A 4.33A 3.25A
Output Voltage 12V 24V 36V 48V
Dimensions 30 X 125.2 X 116 mm 30 X 125.2 X 116 mm 30 X 125.2 X 116 mm 30 X 125.2 X 116 mm
Working Temperature -40~+70C
