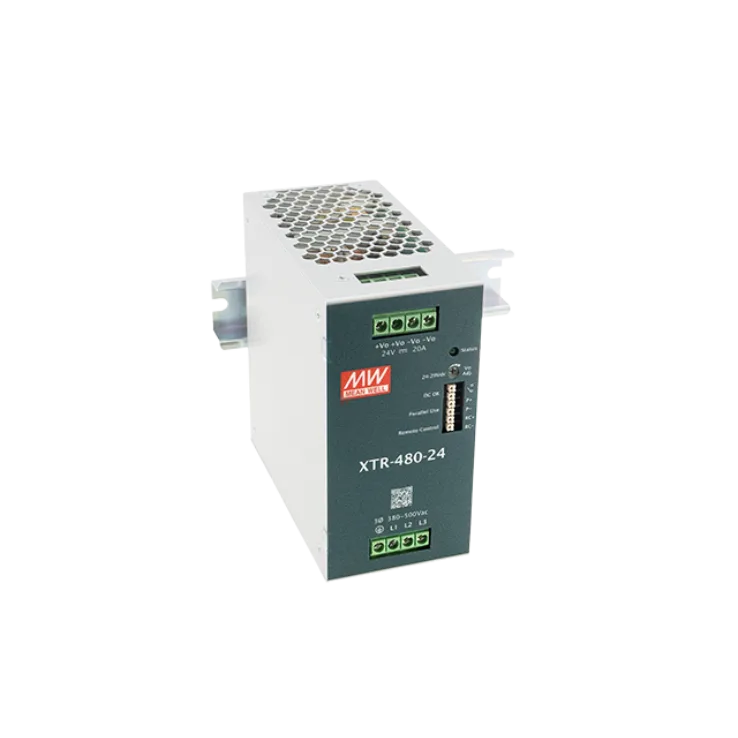

MEAN WELL XTR-480 Series DIN Rail Power Supplies 360–480W

Download Datasheet
Models:
  • XTR-480-12
  • XTR-480-24
  • XTR-480-36
  • XTR-480-48
Manufacturer: MEAN WELL
Type: DIN Rail Power Supplies

XTR-480 Series Features:

The XTR-480 Series is a 480W AC/DC ultra slim industrial high-reliability DIN rail power supply

Features

  • Three-Phase 320~600Vac wide range input (Dual phase operation possible
  • 63mm Ultra slim width
  • High efficiency up to 95.5% and low power dissipation
  • 200% Peak Power capability
  • Built-in constant current limiting circuit
  • Current sharing up to 1920W(3+1) for parallel use
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Fanless design, cooling by free air convectio
  • Over voltage category III (OVC III)
  • -40~+85C wide range operation temperature (>+60C derating)
  • Operating altitude up to 5000 meters
  • DC OK relay contact
  • Ultra low inrush current <10A
  • Built-in OR-ing FET
  • Tool free terminal block (LA type)
  • Conformal coating
  • Can be installed on DIN Rail TS-35/7.5 or 15
  • 5 years warranty
Wattage 360 480 478.8 480
Input Voltage 320~600Vac 320~600Vac 320~600Vac 320~600Vac
Output Current 30A 20A 13.3A 10A
Output Voltage 12V 24V 36V 48V
Dimensions 63 X 125.2 X 125 mm 63 X 125.2 X 125 mm 63 X 125.2 X 125 mm 63 X 125.2 X 125 mm
Working Temperature -40~+85C -40 ~ +85C -40~+85C
