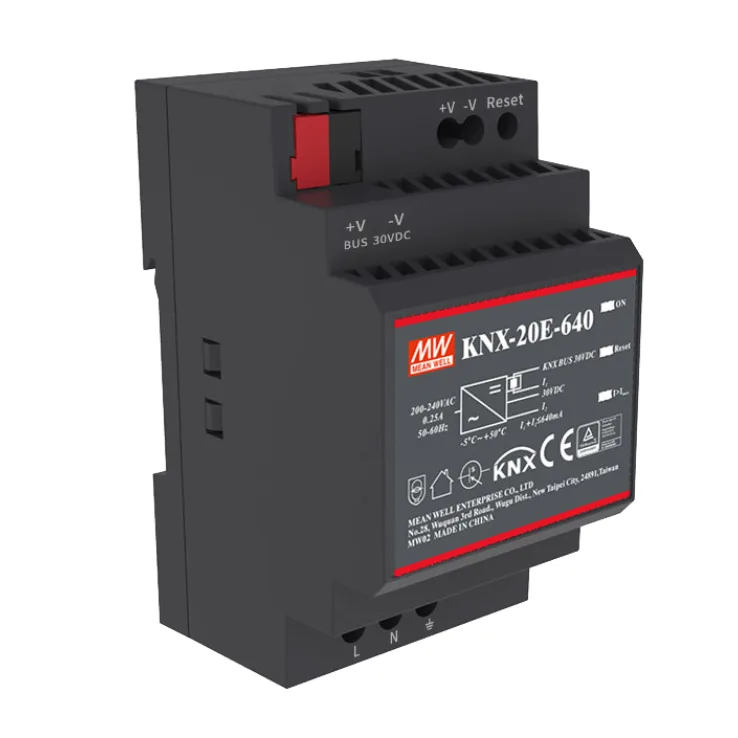

MEAN WELL KNX-20E Series KNX Power Supplies

Download Datasheet
Models:
  • KNX-20E-640
Manufacturer: MEAN WELL
Type: KNX Power Supplies

KNX-20E Series Features:

EIB / KNX power supply with integrated choke

Compact size with 3SU (52.5mm) width

No load power consumption <0.5W

Protections: Short circuit/ Overload/ Over voltage

Other features:

  • input 180-264VAC
  • Safety extra low voltage (SELV)
  • Isolation class I
  • Cooling by free air convection
  • LED indicator for normal operation, bus reset and bus overload
  • Installed on DIN rail TS-35/7.5 or 15
  • 100% full load burn-in test
  • 3 year warranty
Wattage 19.2
Input Voltage 180-264VAC
Output Current 640mA
Output Voltage 30
Output Voltage Options Single
Dimensions 52.5x 90x 54
Working Temperature -30-+70°C
Safety Standards EN61558-1, EN61558-2-16 approved
EMC Standards Compliance to EN50491-5-2.-5-3; EN50491-3; EN61000-3-2,-3-3 Compliance to EN50491-5-2,-5-3; EN61000-4-2,3,4,5,6,8,11, heavy industry level, criteria A
