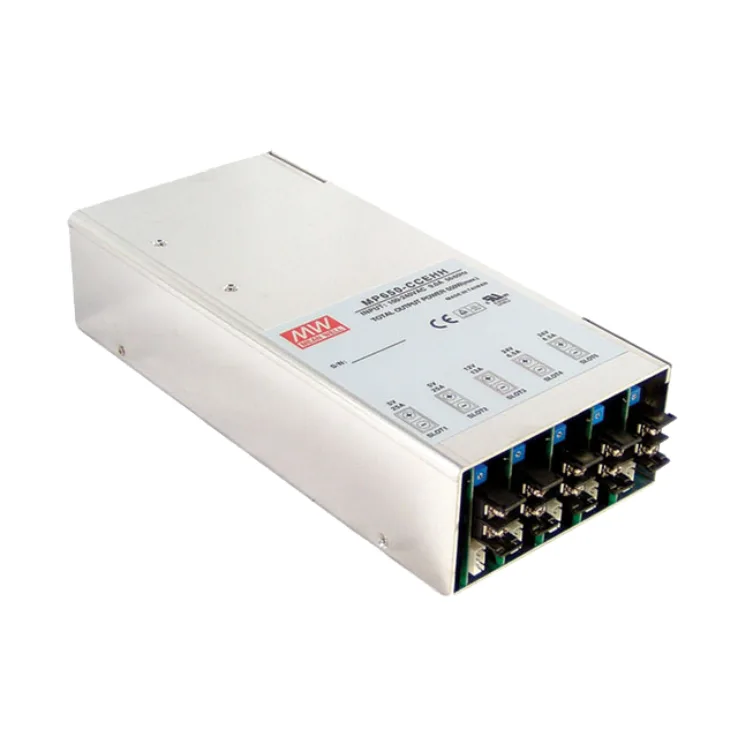

MEAN WELL MP650 Series Modular Type
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Modular Type |
MP650 Series Features:
Switching power supplies with modular design that consists of 2 stages; Front end PFC and output modules. Using zero voltage switching technology to realize the power factor correction, the line input is rectified into high DC voltage by the front end PFC stage, and then the DC output modules will transfer the operating voltage into all kinds of DC output voltages from 1.6V to 53V.
Features:
- Universal input voltage
- Uses ZVS technology to reduce power dissipation and improve efficiency
- Large range of output configurations available
- Remote control on each module
- Remote sense on MS-75, 150 & 300 modules
- Built in active PFC, PF>0.95
- Built in parallel function on MS-300
- Fan alarm function
- Forced air cooling
For use with:
MS75 and 150 Series
MS150 and 300 Series
| Working Temperature | -20~70°C |
|---|---|
| Safety Standards | UL60950-1, TUV EN60950-1, EN60601-1 approved |
| EMC Standards | Complies to EN55022 Class B, EN6100-3, -2,3, EN61000-4-2,3,4,5,6,8,11, ENV50204, EN55024, EN61000-6-1, EN61204-3 Light Industrial Level, Criteria A |
