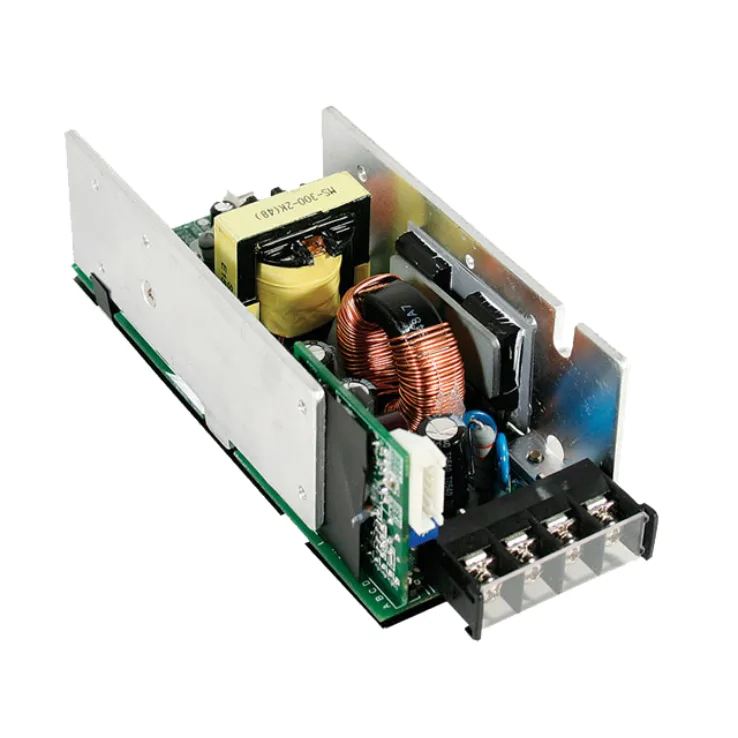

Mean Well MS-300-2A Series Modular Type W

Models:
  • MS-300-2A
  • MS-300-2B
  • MS-300-2C
  • MS-300-2D
  • MS-300-2E
  • MS-300-2F
  • MS-300-2G
  • MS-300-2H
  • MS-300-2I
  • MS-300-2J
  • MS-300-2K
Manufacturer: Mean Well
Type: Modular Type

MS-300-2A Series Features:

MS-300: 2-SLOT parallelable single output (300W max.)

Output Current 0~50A 0~50A 0~50A 0~40A 0~25A 0~20A 0~16.7A 0~12.5A 0~11.2A 0~9.1A 0~6.3A
Output Voltage 2V 3.3V 5V 7.5V 12V 15V 18V 24V 27V 33V 48V
Output Voltage Options 1.6~2.6V 2.6~4.0V 4.0~6.0V 6.0~9.0V 9.0~13.2V 13.2~16.8V 16.8~20.0V 20.0~26.4V 25.0~31.0V 30.0~40.0V 40.0~53.0V
