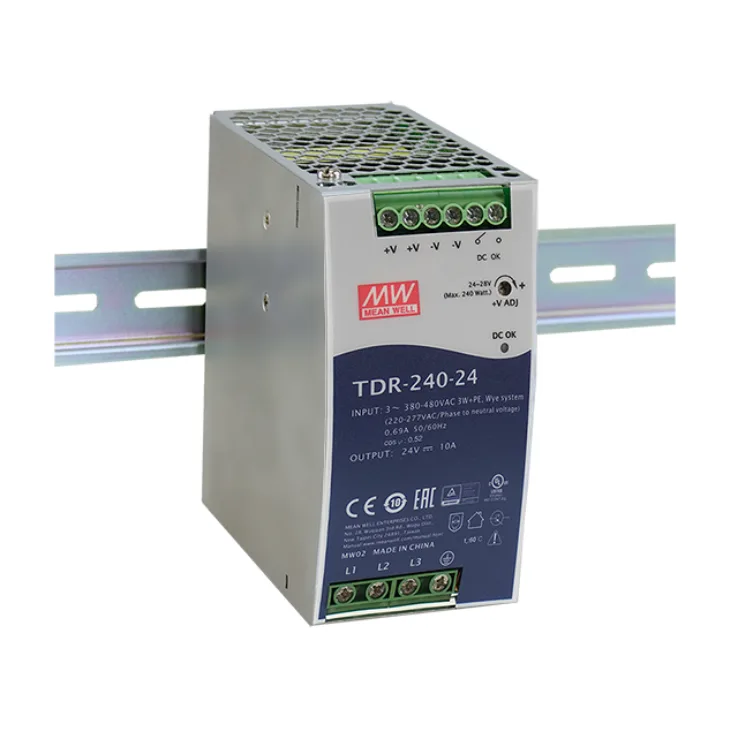

Mean Well TDR-240 Series DIN Rail Power Supplies 240W

Download Datasheet
Models:
  • TDR-240-24
  • TDR-240-48
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

TDR-240 Series Features:

Three Phase 340-550VAC wide range input

63mm slim profile (width)

Other features:

  • High efficiency 92% and low power dissipation
  • Build-in passive PFC function
  • UL61010 approved, EN61000-6-2 industrtial immunity level
  • DC OK relay contact
  • 3 years warranty
Wattage 240 240
Input Voltage Three-Phase 340 ~ 550VAC (Dual phase operation possible in connecting L1,L3,FG or L2,L3,FG) or 480 ~ 780VDC Three-Phase 340 ~ 550VAC (Dual phase operation possible in connecting L1,L3,FG or L2,L3,FG) or 480 ~ 780VDC
Output Current 0-10A 0-5A
Output Voltage 24 48
Output Voltage Options Single Single
DC output adjustment 24-28V 48-55V
Dimensions 63 x 125.2 x 113.5 63 x 125.2 x 113.5
Working Temperature -30 - +70C
Safety Standards UL61010-1, UL61010-2-201, EN61558-1, EN61558-2-16, EAC TP TC 004 approved
EMC Standards EN55032(CISPR32)/EN61204-3, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
