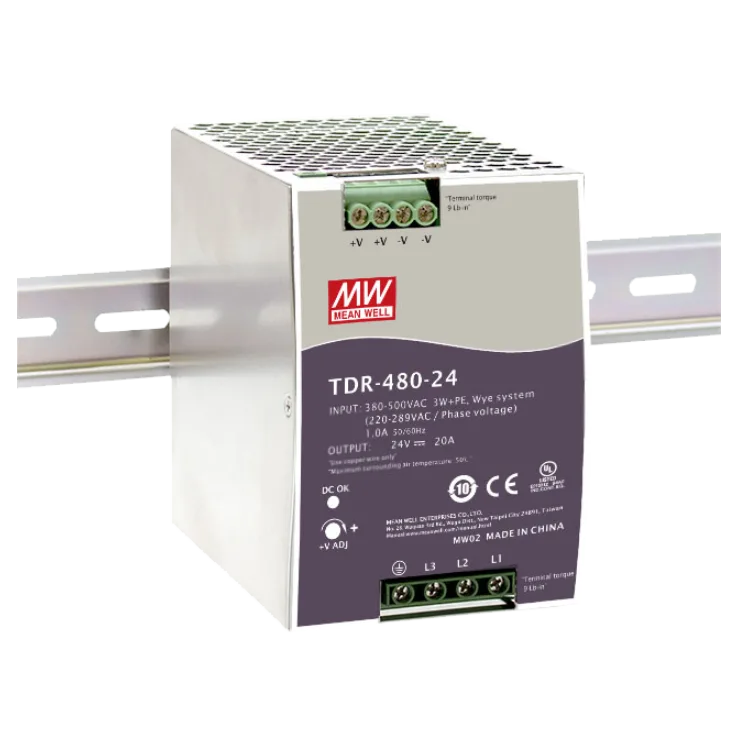

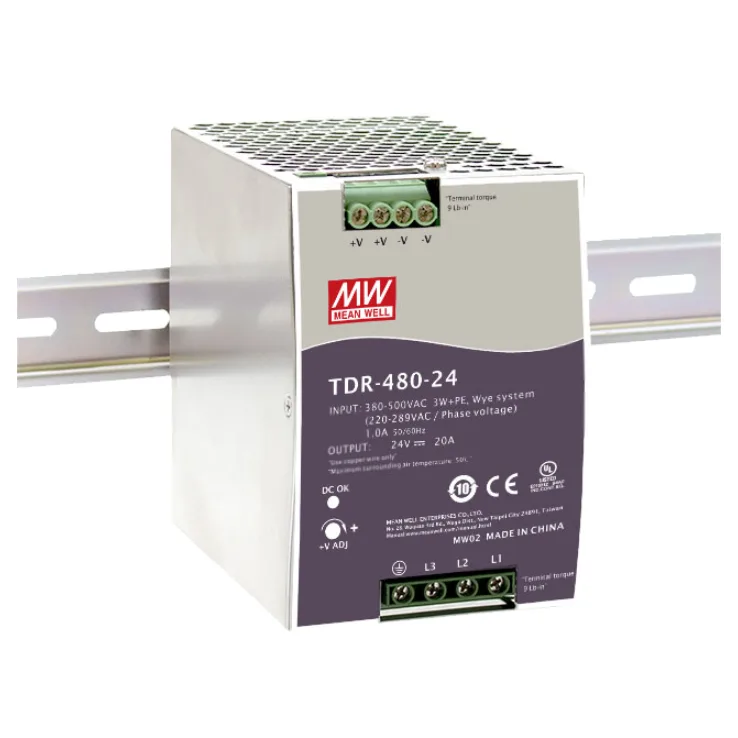

Mean Well TDR-480 Series DIN Rail Power Supplies 480W

Download Datasheet
Models:
  • TDR-480-24
  • TDR-480-48
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

TDR-480 Series Features:

Three-Phase 340 ~ 550VAC wide range input (Dual phase operation possible)

High efficiency 93% and low power dissipation

Width only 85.5mm

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Other features:

  • Built-in active PFC function compliance to EN61000-3-2
  • Built-in constant current limiting circuit
  • Can be installed on DIN rail TS-35/7.5 or 15
  • Cooling by free air convection
  • UL508 (Industrial control equipment) approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • Optional DC OK relay contact
  • 3 year warranty
Wattage 480 480
Input Voltage 340-550VAC 340-550VAC
Output Current 20A 10A
Output Voltage 24 48
Output Voltage Options Single Single
DC output adjustment 24-28V 48-55V
Dimensions 85.5x 125.2x 128.5 85.5x 125.2x 128.5
Working Temperature -30-+70°C
Safety Standards UL508, IEC60950-1 CB approved by UL
EMC Standards Compliance to EN55022 (CISPR22), EN55032 (CISPR32) / EN61204-3, EN61000-3-2, EN61000-3-3. Compliance to EN55024, EN60601-1-2, EN61204-3, EN61000-4-2,3,4,5,6,8,11
