MEAN WELL

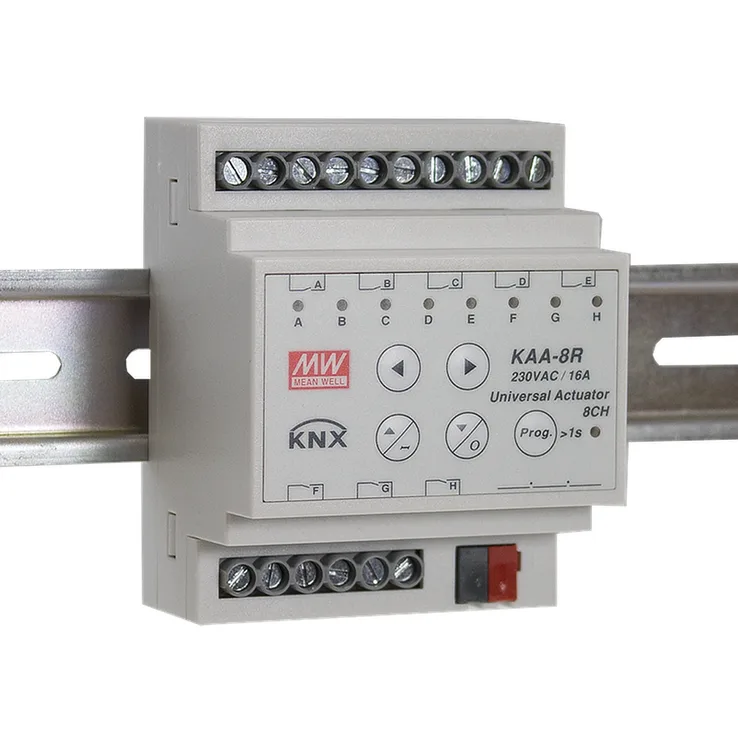

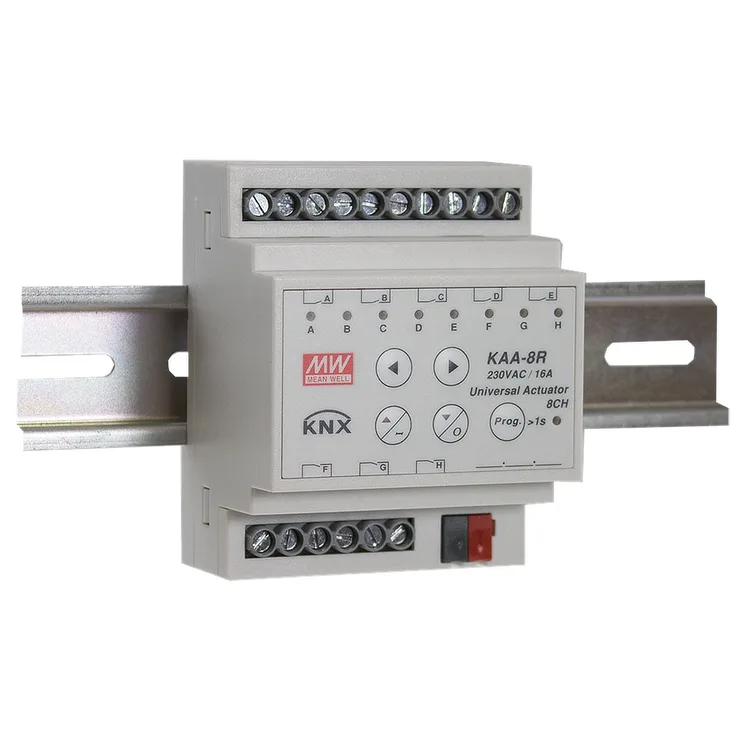

MEAN WELL KAA-8R-S Series KNX LED Drivers W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | KNX LED Drivers |
KAA-8R-S Series Features:
The KNX actuator is a 8 channel device with high quality independent latching relay for switch, shutter or any possible mixed applications.
Features:
- 8 channel actuator in a compact size
- Suitable for various and mixed applications
- For AX, C-load, capacitive & inductive of loads
- Program via ETS5.0 software
- Support KNX data secure
- Manual control via push button
- Programmable various time and scene function
- 3 years warranty
| Input Voltage | 230VAC | 230VAC |
|---|---|---|
| Output Current | 16 | 10 |
| Dimensions | 72x90x57mm | 72x90x57mm |
| Working Temperature | -30~45°C | |
| Safety Standards | BS EN/EN50491-3, BS EN/EN60669-1, BS EN/EN60669-2-1, BS EN/EN60669-2-5, EAC TP TC 004 approved | |
| EMC Standards | Compliance to BS EN/EN50491-5-1, -2, -3, BS EN/EN50090-2-2, BS EN/EN60669-2-1, BS EN/EN60669-2-5, BS EN/EN630445-5-1,-2,-3, EAC TP TC 020 | |
