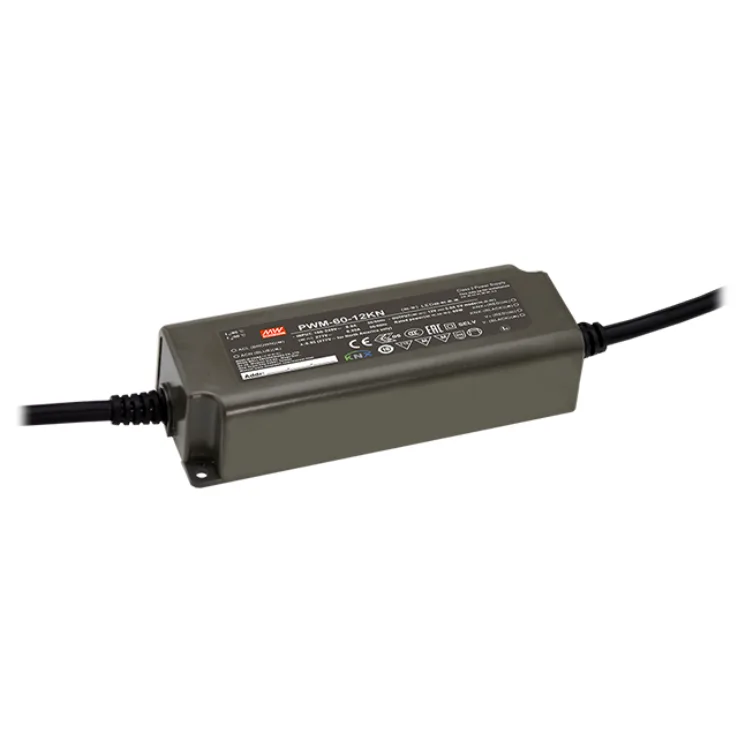

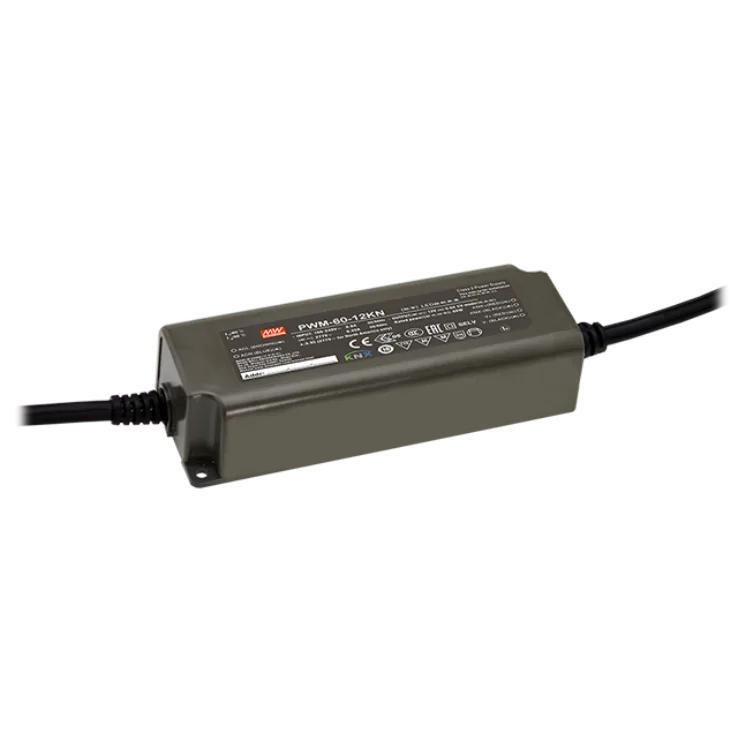

Mean Well PWM-60-KN Series KNX LED Drivers 60W

Download Datasheet
Models:
  • PWM-60-12KN
  • PWM-60-24KN
Manufacturer: Mean Well
Type: KNX LED Drivers

PWM-60-KN Series Features:

Constant Voltage style output PWM with user changeable frequency up to 4KHz compliant IEEE1789-2015 no risk

Plastic housing with class II design

Other features:

  • Built-in active PFC function
  • Standby power consumption <0.5W
  • Integrated KNX control portocol
  • No need KNX-DALI gateway
  • Typical lifetime >50000 hours
  • 5 years warranty
Wattage 60 60
Input Voltage 90-305VAC, 127-431VDC 90-305VAC, 127-431VDC
Output Voltage 12 24
Output Voltage Options Single Single
Dimensions 150 x 53 x 35 150 x 53 x 35
Working Temperature -40 - +85°C
Safety Standards ENEC EN61347-1, EN61347-2-13, EN62384 independent, GB19510.14,GB19510.1,EAC TP TC 004 approved, KNX Certified protocol, I/P-O/P:3.75KVAC, I/P-O/P:100M Ohms / 500VDC/ 25C/ 70C CRH
EMC Standards Compliance to55015, 61000-3-2 Class C (@load>60%) ;61000-3-3, GB17743 and GB17625.1, EAC TP TC 020, Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EAC TP TC 020
