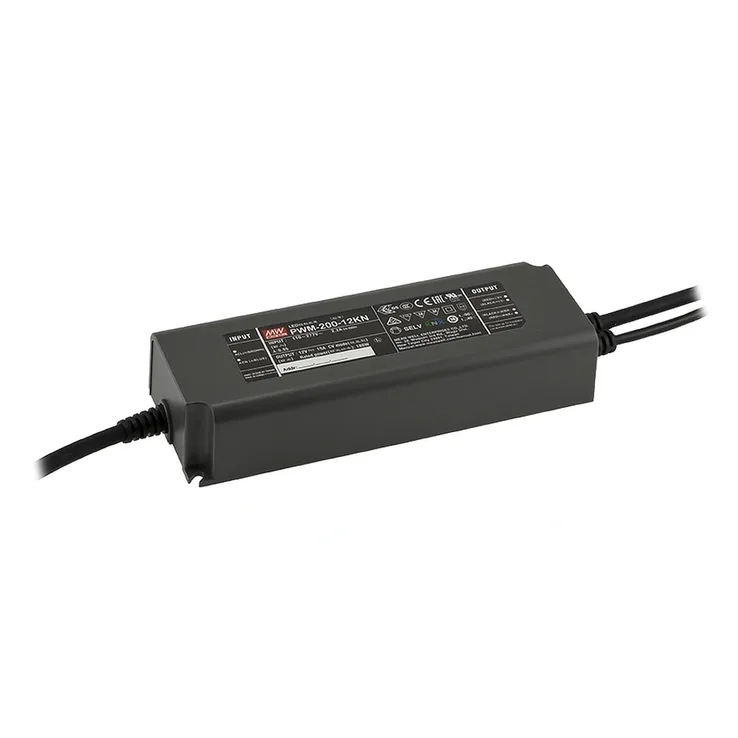

MEAN WELL PWM-200KN Series KNX LED Drivers 180–200.1W

Download Datasheet
Models:
  • PWM--200-12KN
  • PWM-200-24KN
  • PWM-200-36KN
  • PWM-200-48KN
Manufacturer: MEAN WELL
Type: KNX LED Drivers

PWM-200KN Series Features:

PWM-200KN series is a 200 W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the colour temperature and the brightness homogeneity when driving all kinds of LED strips and constant voltage LED bulbs.

Features:

  • Constant voltage PWM style output with user changeable frequency up to 4KHz compliant IEEE1789-2015 and EU Ecodesign SVM requirement
  • Min.dimming level 0.01%
  • Plastic housing with class II design
  • Standby power consumption <0.5W
  • Support KNX Data Secure
  • No need KNX-DALI gateway
  • Typical lifetime>50000 hours
  • 5 years warranty
Wattage 180 199.2 199.8 200.1
Input Voltage 100~305VAC 100~305VAC 100~305VAC 100~305VAC
Output Current 15 8.3 5.55 4.17
Output Voltage 12 24 36 48
Dimensions 195*68*39.5mm 195*68*39.5mm 195*68*39.5mm 195*68*39.5mm
Working Temperature Tcase=-40~+85°C
Safety Standards UL8750 (type "HL"), CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independant, EAC TP TC 004, GB19510.1, GB19510.14 approved; Design refer to BS EN/EN60335-1, According to BS EN/EN61347-2-13 appendix J suitable for emergency installations.
EMC Standards Compliant to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load>60%); BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020
