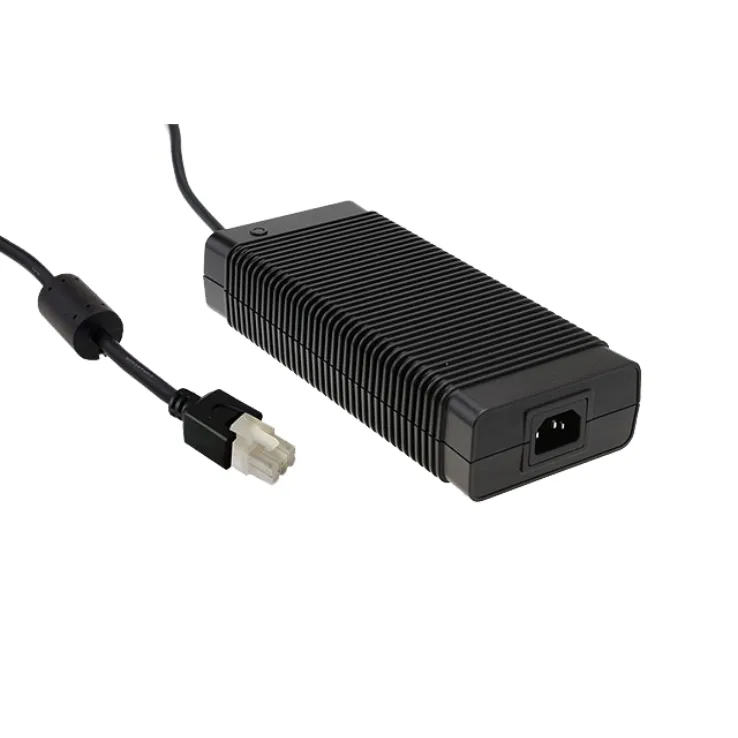

MEAN WELL GST360A Series External Power Supplies 330–360W

Models:	GST360A12-C8P GST360A15-C8P GST360A24-C6P GST360A36-C6P GST360A48-C6P GST360A55-C6P
Manufacturer:	MEAN WELL
Type:	External Power Supplies

GST360A Series Features:

The GST360A is suitable for commercial equipment, industrial instrument, and other equipment where high efficiency is critical. Common applications include 3D printer, POS system, gaming systems, portable speaker, portable stage lighting, PoE, etc.

Features:

Universal 85～264VAC input
IEC320-C14 AC inlet (Class I with FG)
450W peak load capability (3s)
Fanless design, cooling by free air convection
Operating temperature: -30～+70°C
No load power consumption< 0.5W
Compliance to Level VI international efficiency regulation (EISA 2007/DoE, NRCan)
94V-0 flame retardant plastic enclosure
Complete protections: short circuit, overload, over voltage, over temperature
Support operation at 5000m altitude
Safety approval: CB/ UL/ CUL/ DEKAR/ BSMI/ CCC/ PSE/ KC/ BIS/ EAC/ FCC/ CE/ UKCA
Dimensions (L x W x H): 220 x 95 x 46 mm
3 years warrant

Spec	GST360A12-C8P	GST360A15-C8P	GST360A24-C6P	GST360A36-C6P	GST360A48-C6P	GST360A55-C6P
Wattage	330	340.5	360	360	360	360
Input Voltage	85~264VAC	85~264VAC	85~264VAC	85~264VAC	85~264VAC	85~264VAC
Output Current	27.5	22.7	15	10	7.5	6.55
Output Voltage	12	15	24	36	48	55
Dimensions	220x95x46mm	220x95x46mm	220x95x46mm	220x95x46mm	220x95x46mm	220x95x46mm
Working Temperature	-30~70°C
Safety Standards	UL62368-1, CSA C22.2 NO.62368-1, Dekra BS EN/EN62368-1, BSMI CNS14336, CCC GB4943, PSE J62368-1, BIS IS13252, KC 62368-1, EAC TP TC 004 approved
EMC Standards	BS EN/EN55032(CISPR32), FCC PART 15/CISPR22 CAN ICES-3(B)/NMB-3(B), CNS13438, GB17625.1 EAC TP TC 020, MSIP KN32
