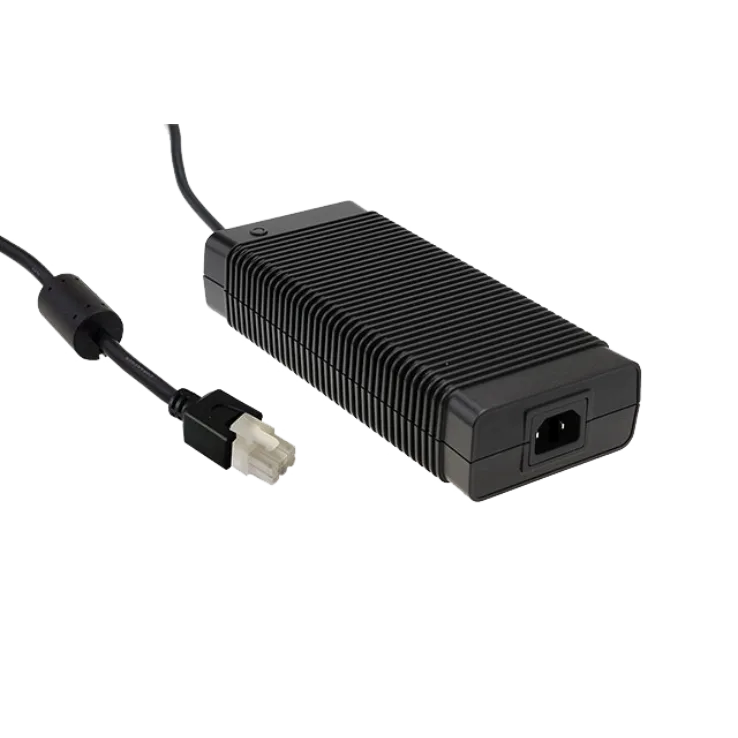

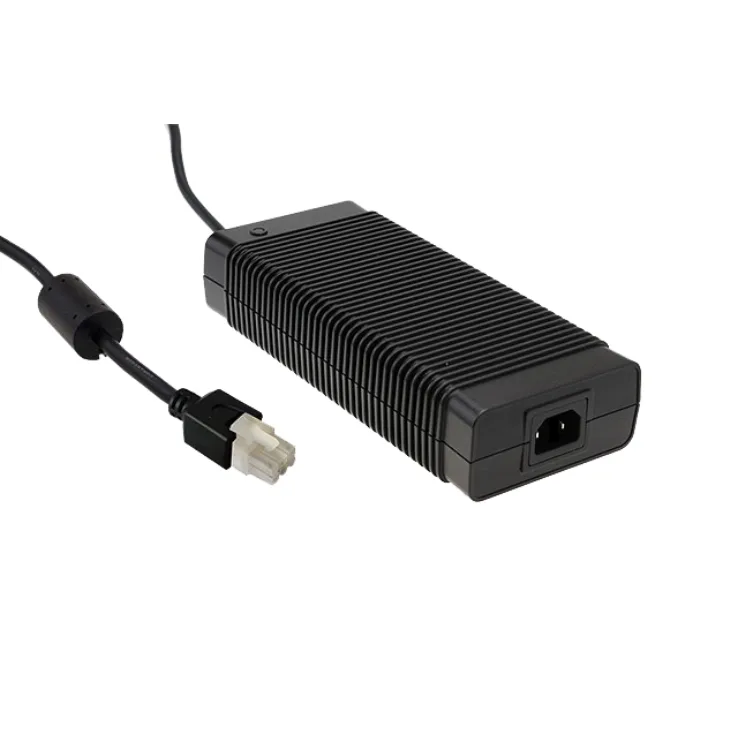

MEAN WELL GST360B Series External Power Supplies 330–360W

Models:	GST360B12-C8P gst360b15-c8p GST360B24-C6P GST360B36-C6P GST360B48-C6P GST360B55-C6P
Manufacturer:	MEAN WELL
Type:	External Power Supplies

GST360B Series Features:

GST360B is a highly reliable, 360W desktop style single-output green adaptor series.

Features:

Universal 85~264VAC input
IEC320-C18 AC inlet (Class II, without FG)
450W peak load capability (3s)
Fanless design, cooling by free air convection
Operating temperature: -30~+70°C
No load power consumption < 0.5W
Compliance to Level VI international efficiency regulation (EISA 2007/DoE, NRCan, EU ErP)
94V-0 flame retardant plastic enclosure
Complete protections: short circuit, overload, over voltage, over temperature
Support operation at 5000m altitude
Safety approval: CB/ UL/ CUL/ DEKRA/ EAC/ RCM/ CB/ CE/ UKCA/ FCC
Dimensions (Lx WxH): 220 x 95 x 46 mm
3 years warranty

Spec	GST360B12-C8P	GST360B15-C8P	GST360B24-C6P	GST360B36-C6P	GST360B48-C6P	GST360B55-C6P
Wattage	330	340.5	360	360	360	360
Input Voltage	85~264VAC	85~264VAC	85~264VAC	85~264VAC	85~264VAC	85~264VAC
Output Current	27.5	22.7	15	10	7.5	6.55
Output Voltage	12	15	24	36	48	55
Dimensions	2209546mm	2209546mm	2209546mm	2209546mm	2209546mm	2209546mm
Working Temperature	-30~70°C
Safety Standards	UL62368-1, CSA C22.2 No.62368-1, Dekra BS EN/EN62368-1,IEC 61558-1,IEC 61558-2-16, AS/NZS 61558-1/-2-16, EAC TP TC 004 approved
EMC Standards	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),EAC TP TC 020, BS EN/EN61000-3-2, BS EN/EN61000-3-3
