| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | External Power Supplies |

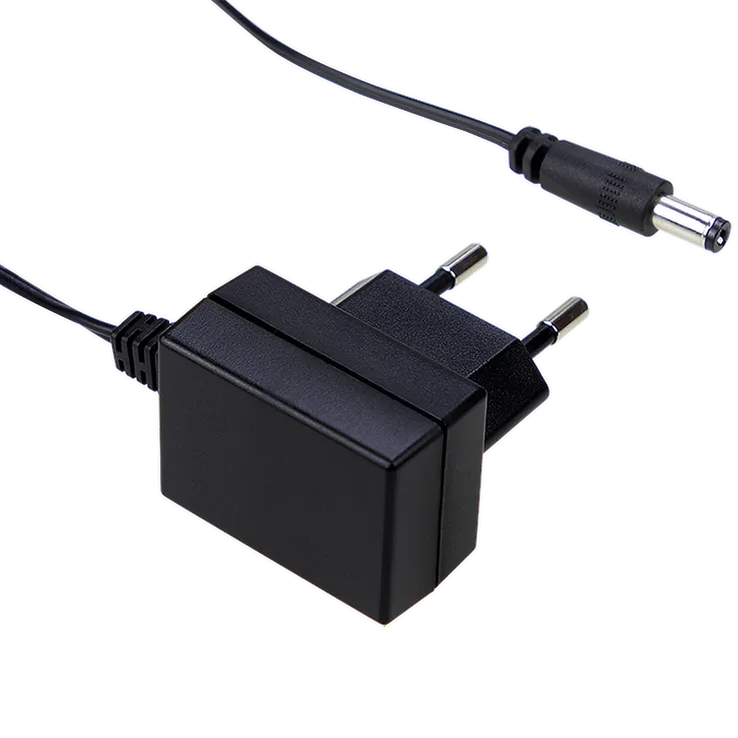

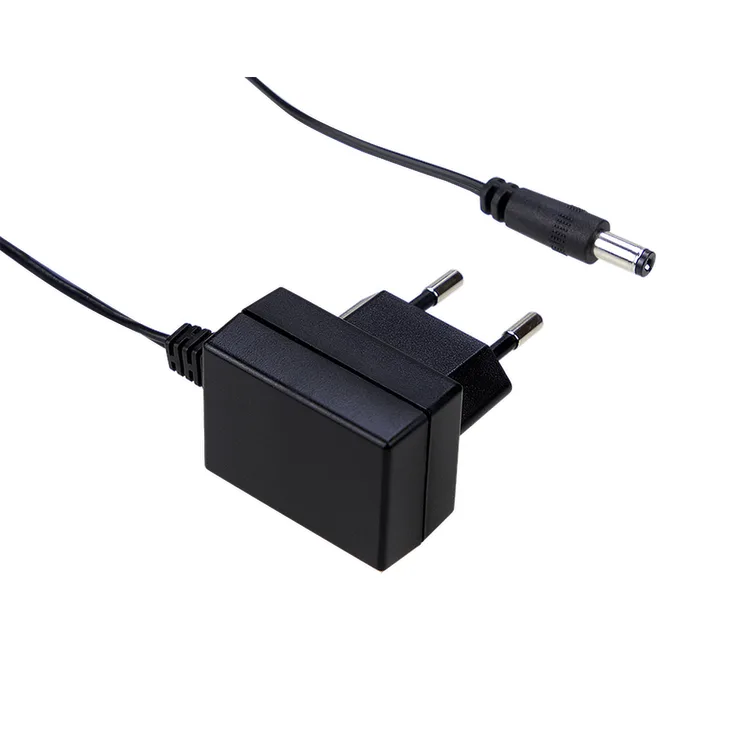

SGAS06E is a 6W compact size highly reliable, desktop style sing-output green adaptor series, which is compact and convenient for carry.
Features:
| Wattage | 5 | 6 | 6 | 6 | 6 | 6 | 6 |
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC |
| Output Current | 1.00 | 0.8 | 0.66 | 0.5 | 0.4 | 0.25 | 0.125 |
| Output Voltage | 5 | 7.5 | 9 | 12 | 15 | 24 | 48 |
| Dimensions | 41.5x30.5x20mm | 41.5x30.5x20mm | 41.5x30.5x20mm | 41.5x30.5x20mm | 41.5x30.5x20mm | 41.5x30.5x20mm | 41.5x30.5x20mm |
| Working Temperature | -20~85°C | ||||||
| Safety Standards | TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-3-2, BS EN/EN61000-3-3 | ||||||
