MEAN WELL NGE18 series External Power Supplies 15–18W

Download Datasheet
Models:
  • NGE18I05-P1J
  • NGE18I09-P1J
  • NGE18I12-P1J
  • NGE18I15-P1J
  • NGE18I18-P1J
  • NGE18I24-P1J
Manufacturer: MEAN WELL
Type: External Power Supplies

NGE18 series Features:

Description:

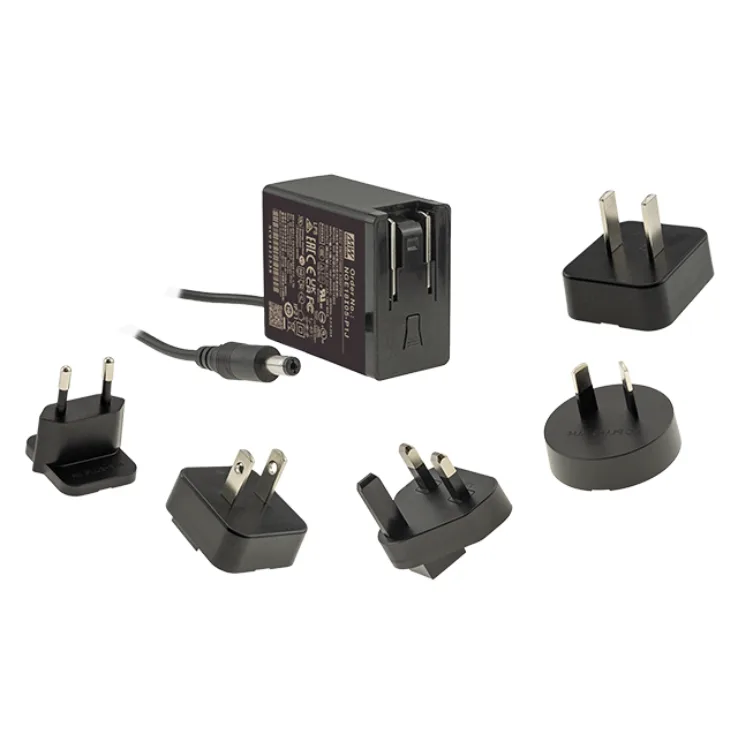

NGE18 is a highly reliable, 18W wall-mounted style single-output green adaptor series, which is compact and convenient for carry.

Features:

MEANWELL Patent Application Number: 202330347779.4
Interchangeable AC plugs
Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-2-16)
Universal AC input / Full range
Ultra slim (28mm)
No load power consumption<0.075W
Energy efficiency Level VI
Class II power (no earth pin)
Protections: Short circuit / Overload / Over voltage
Pass LPS
Extremely leakage current <100uA
-30℃~+70℃
Various DC plug quick adaptor accessory available (plug kit sold separately)
3 years warranty

Wattage 15 18 18 18 18 18
Input Voltage 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC
Output Current 3A 2A 1.5A 1.2A 1A 0.75A
Output Voltage 5V 9V 12V 15V 18V 24V
Dimensions 48*28*55mm (L*W*H) 48*28*55mm (L*W*H) 48*28*55mm (L*W*H) 48*28*55mm (L*W*H) 48*28*55mm (L*W*H) 48*28*55mm (L*W*H)
Working Temperature -30 ~ +70℃ (Refer to "Derating Curve")
Safety Standards CB IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1, ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2 NO.60601-1/-1-11; DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS EN/EN61558-1/-2-16, BS EN/EN60335-1; PSE J62368-1; BSMI CNS15598-1; RCM AS/NZS 61558-1/-2-16; EAC TPTC004; CCC GB4943.1 approved
EMC Standards BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021 BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021 BS EN/EN61000-3-2 BS EN/EN61000-4-2 BS EN/EN61000-4-3 BS EN/EN61000-4-4 BS EN/EN61000-4-6 BS EN/EN61000-4-5 BS EN/EN61000-4-8 BS EN/EN61000-4-11
