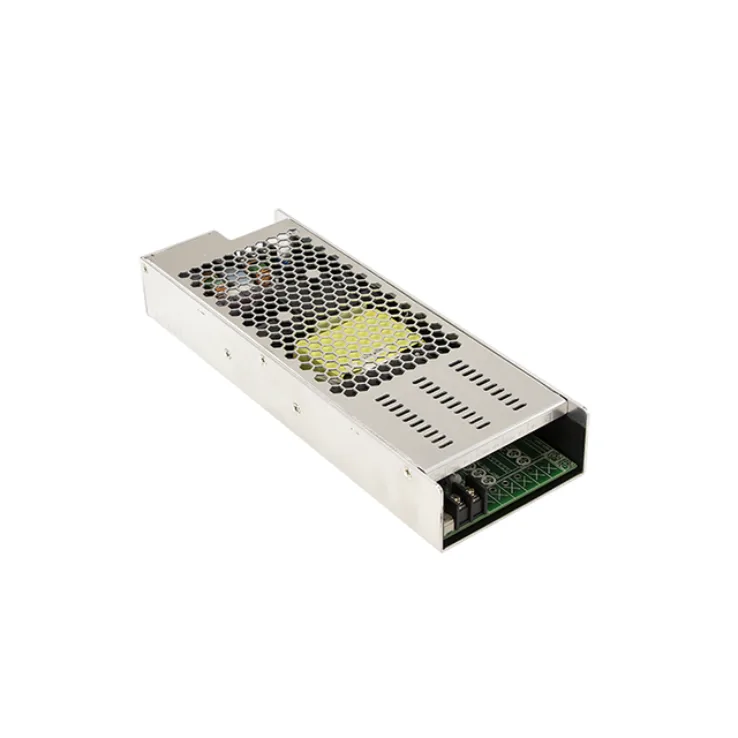

Mean Well UMP-400 Series Modular Type 400W

Download Datasheet
Models:
  • UMP-400-24
  • UMP-400-48
Manufacturer: Mean Well
Type: Modular Type

UMP-400 Series Features:

Universal AC input/Full range

Fanless design, 400W convention

Other features:

  • Modular design, optional configuration available
  • Slim and 1U low profile
  • no minimum load required
  • -30 ~ +70C working temperature
  • LED indicator for power on
  • 3 years warranty
Wattage 400 400
Input Voltage 90-264VAC, 127-370VDC 90-264VAC, 127-370VDC
Output Current 16.7A 8.3A
Output Voltage 24V 48V
Output Voltage Options Single Single
DC output adjustment 22.8-25.2V 45.6-50.4V
Dimensions 250 x 89 x 37 250 x 89 x 37
Working Temperature -30 - +70°C
Safety Standards EAC TP TC 004; UL62368-1, Dekra seal EN62368-1 approved; Design refertoANSI/AAMI ES60601-1, TUV EN60601-1, IEC 60601-1 (3" edition)
EMC Standards EN55032 (CISPR32) / Design refer to EN55011 (CISPR11) , EN61000-3-2,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
