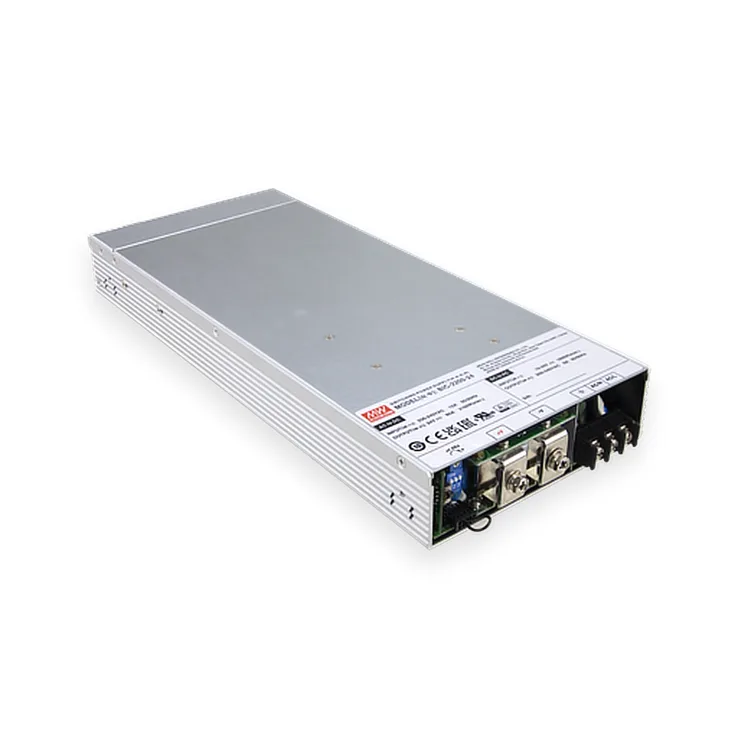

Mean Well BIC-2200 Series Enclosed Power Supplies 2160W

Download Datasheet
Models:
  • BIC-2200-12
  • BIC-2200-24
  • BIC-2200-48
  • BIC-2200-96
Manufacturer: Mean Well
Type: Enclosed Power Supplies

BIC-2200 Series Features:

The BIC-2200 is a 2.2KW bidirectional power supply with energy recycle function.

Features:

  • 1U low profile design
  • Full digital design with 93% conversion efficiency for both AC/DC and DC/AC conversion
  • Ultrafast switching time between AC/DC and DC/AC of 1ms
  • CB/UL/TUV CB/TUV/UL 62368-1 certified, and design refer to IEC 62477 regulation
    Active current sharing up to 11000W(4+1)
  • <3% Low THDi in both conversion mode
  • Force charging and discharging mode with CANBus command (optional)
  • Complete protections: Anti-islanding protection, AC fail protection, DC OVP, OLP, OCP, OTP
  • 5 years warranty
Wattage 2160 2160 2160 2160
Input Voltage 180~264VAC 180~264VAC 180~264VAC 180~264VAC
Output Current 180 90 45 22.5
Output Voltage 12 24 48 96
Dimensions 330x140x41mm 330x140x41mm 330x140x41mm 330x140x41mm
Working Temperature -30~70°C
Safety Standards UL62368-1, CAN/CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, IEC62477-1 (by request) approved
EMC Standards BS EN/EN55032(CISPR32), BS EN/EN61000-3-2, BS EN/EN61000-3-3
