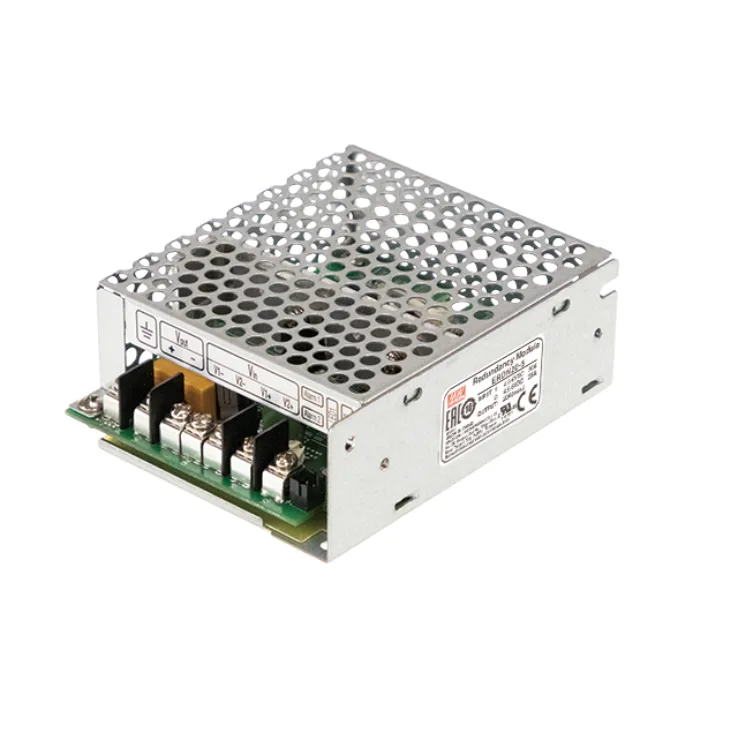

MEAN WELL ERDN20 Series Enclosed Power Supplies W

Download Datasheet
Models:
  • ERDN20-5
  • ERDN20-12
  • ERDN20-24
  • ERDN20-48
Manufacturer: MEAN WELL
Type: Enclosed Power Supplies

ERDN20 Series Features:

Support 1+1 and N+1 redundancy system

2 channels input and 1 output

Other features:

  • Suitable for redundancy operation of 5V/12V/24V/48 system
  • Output current up to 20A
  • Cooling by free air convection
  • -40~+80 ultra-wide operating temperature (+60 derating)
  • Built-in 2 channels DC OK signal and alarm relay contact
  • 3 years warranty
Input Voltage 5V 12V 24V 48V
Output Current 0-20A 0-20A 0-20A 0-20A
Output Voltage 5V 12V 15V 5V
Output Voltage Options Single Single Single Single
DC output adjustment 0-20A 0-20A 0-20A 0-20A
Dimensions 82 x 99 x 36 82 x 99 x 36 82 x 99 x 36 82 x 99 x 36
Working Temperature -40 - +80°C
Safety Standards IEC62368-1, UL62368-1,approved EAC TP TC 004
EMC Standards EN55032(CISPR32), EN61000-4-2,3,4,5,6,8
