MEAN WELL

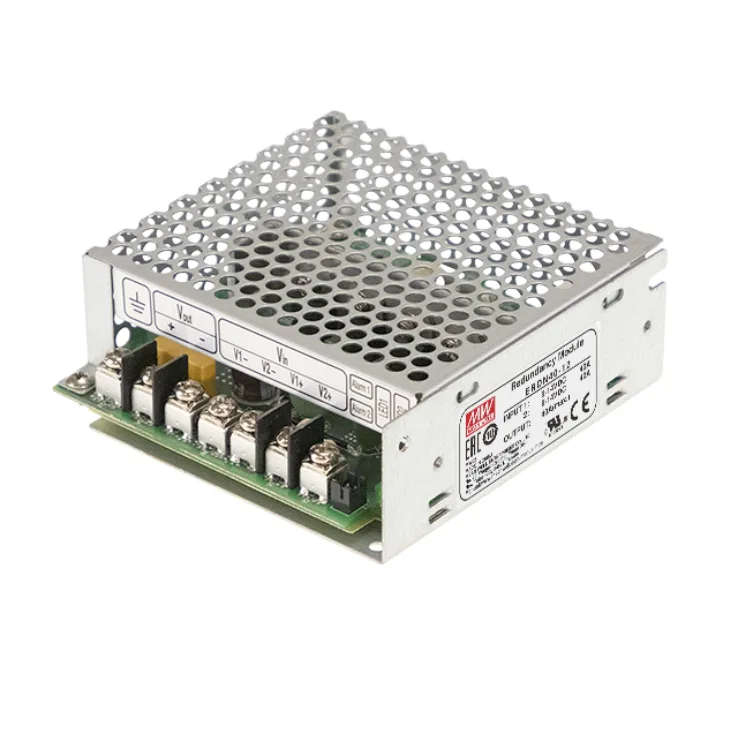

MEAN WELL ERDN40 Series Enclosed Power Supplies W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
ERDN40 Series Features:
Support 1+1 and N+1 redundancy system
2 channels input and 1 output
Other features:
- Suitable for redundancy operation of 12V/24V/48 system
- Output current up to 40A
- Cooling by free air convection
- -40~+80C ultra-wide operating temperature (+60C derating)
- Built-in 2 channels DC OK signal and alarm relay contact
- 3 years warranty
| Input Voltage | 12V | 24V | 48V |
|---|---|---|---|
| Output Current | 0-40A | 0-40A | 0-40A |
| Output Voltage | 12V | 24V | 48V |
| Output Voltage Options | Single | Single | Single |
| DC output adjustment | 0-40A | 0-40A | 0-40A |
| Dimensions | 97 x 99 x 36 | 97 x 99 x 36 | 97 x 99 x 36 |
| Working Temperature | -40 - +80°C | ||
| Safety Standards | IEC62368-1, UL62368-1,approved EAC TP TC 004 | ||
| EMC Standards | EN55032(CISPR32), EN61000-4-2,3,4,5,6,8 | ||
