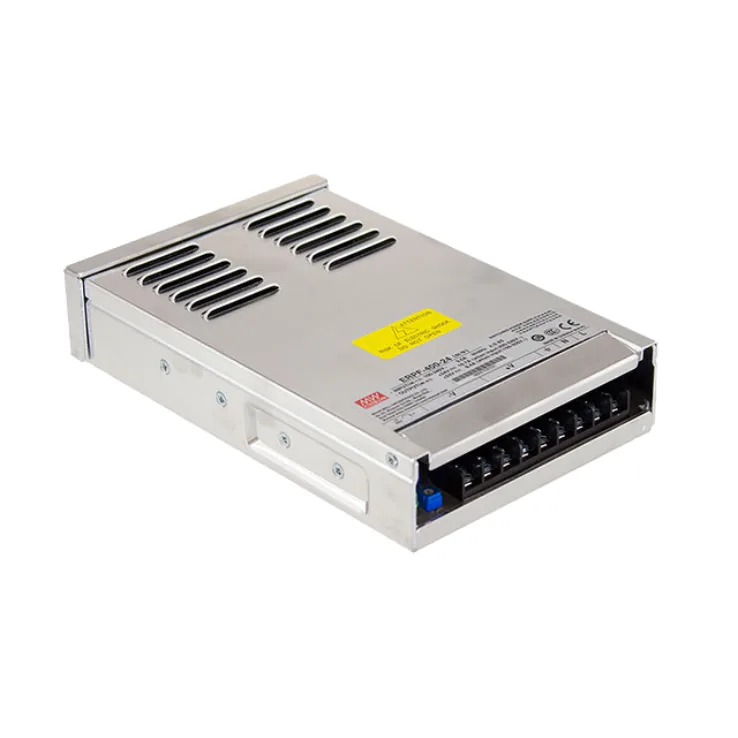

Mean Well ERPF-400 Series Enclosed Power Supplies 360–400.8W

Download Datasheet
Models:
  • ERPF-400-12
  • ERPF-400-24
  • ERPF-400-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

ERPF-400 Series Features:

Design against rain splash

Built-in active PFC function

Protections: Short circuit / Over current / Over voltage/Over temperature

Other features:

  • Universal AC input / Full range
  • Cooling by free air convection
  • High efficiency up to 91%
  • LED indicator for power on
  • Low cost, high reliability
  • 100% full load burn-in test
  • 3 years warranty
Wattage 360 400.8 398.4
Input Voltage 90-264VAC 90-264VAC 90-264VAC
Output Current 0-30A 0-16.7A 0-8.33A
Output Voltage 12 24 48
Output Voltage Options Single Single Single
DC output adjustment 10.8-13.2V 21.6-26.4V 43.2-52.8V
Dimensions 220.4x 130x 48 220.4x 130x 48 220.4x 130x 48
Working Temperature -30~+60°C
Safety Standards GB4943.1-2011
EMC Standards EN55022 (CISPR22) class A, GB9254 class A, GB17625.1;EN61000-3-2, EN61000-4-5; light industry level, criteria A
