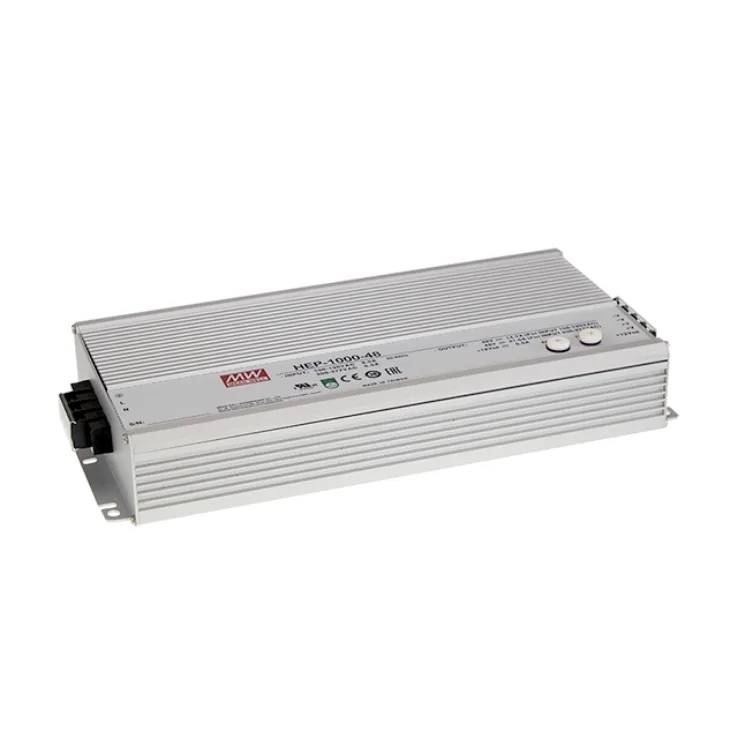

MEAN WELL HEP-1000 Series Enclosed Power Supplies 1000W

HEP-1000 Series Features:

Built-in active PFC function

High efficiency up to 96%

Other features:

Fanless design, cooling by free air convection
Withstand 10G vibration test
Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)
Output voltage and constant current level programmable

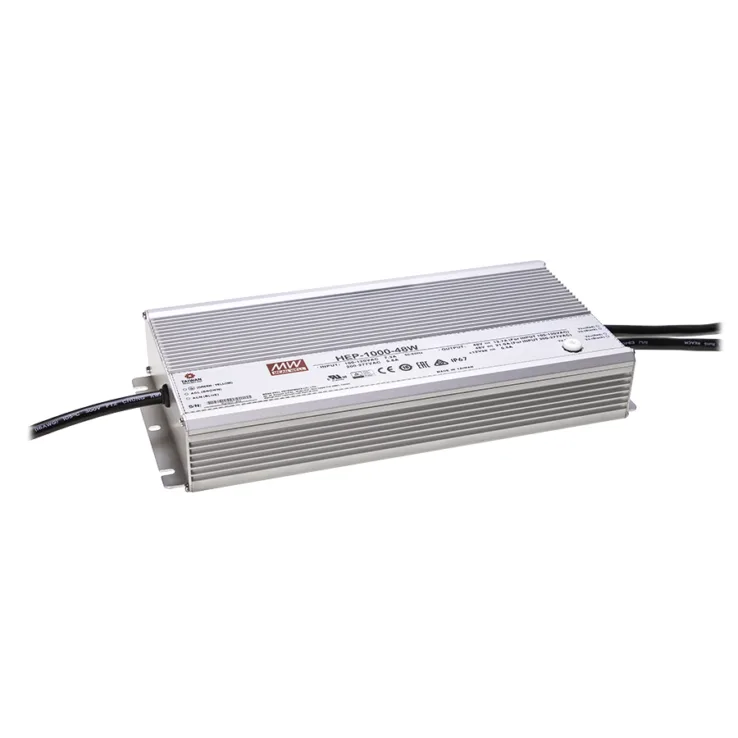

Optional wiring type with IP67 rating
6 years warranty

Spec	HEP-1000-24	HEP-1000-48	HEP-1000-100	HEP-1000-24W	HEP-1000-48W	HEP-1000-100W
Wattage	1000	1000	1000	1000	1000	1000
Input Voltage	90-305VAC, 250-431VDC	90-305VAC, 250-431VDC	90-305VAC, 250-431VDC	90-305VAC, 250-431VDC	90-305VAC, 250-431VDC	90-305VAC, 250-431VDC
Output Current	42A	21A	10A	42A	21A	10A
Output Voltage	24	48	100	24v	48V	100V
Output Voltage Options	Single	Single	Single	Single	Single	Single
Dimensions	310 x 144 x 48.5	310 x 144 x 48.5	310 x 144 x 48.5	310 x 144 x 48.5	310 x 144 x 48.5	310 x 144 x 48.5
Working Temperature	-40 - +70°C
Safety Standards	UL62368-1,TUV EN62368-1, EAC TP TC 004 approved; design refer to EN61558-1, EN60335-1(by request)
EMC Standards	EN55032 (CISPR32), EN61000-3-2, EN61000-4-2,3,4,5,6,8,11
