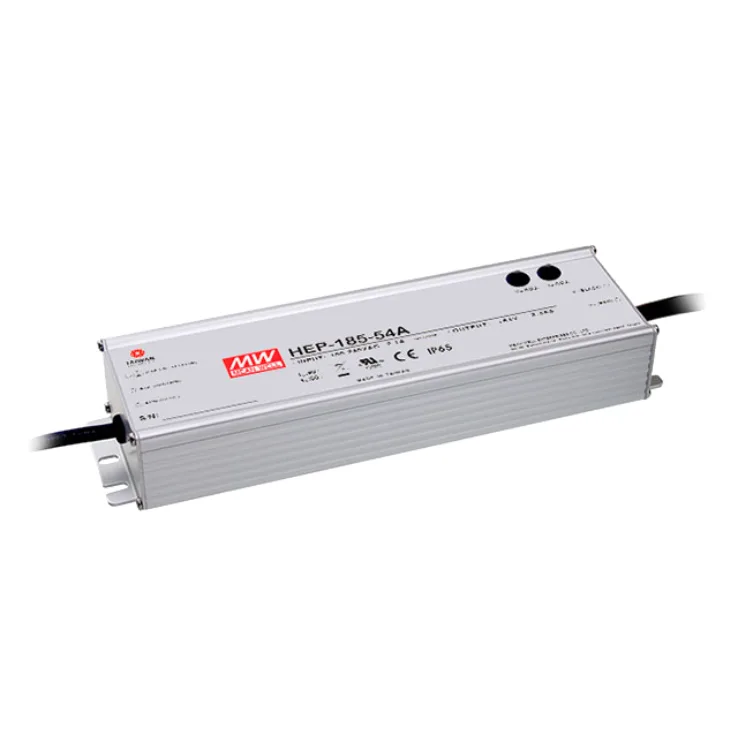

Mean Well HEP-185 Series Enclosed Power Supplies 156–187.2W

Download Datasheet
Models:
  • HEP-185-12
  • HEP-185-15
  • HEP-185-24
  • HEP-185-36
  • HEP-185-48
  • HEP-185-54
Manufacturer: Mean Well
Type: Enclosed Power Supplies

HEP-185 Series Features:

Withstand 10G vibration test

Fanless design, cooling by free air convection

Protections: Short circuit / Over current / Over voltage/Over temperature

Other features:

  • Universal AC input (up to 305VAC) / Full range
  • Built-in active PFC function
  • High efficiency up to 93%
  • -55~+70°C wide operating range
  • Aluminium case and filling with heat-conducted silicone
  • IP65 design, optional IP68 rated model available
  • Meet 6KV surge immunity level
  • Operation altitude up to 5000 meters
  • 6 years warranty
Wattage 156 172 187.2 187.2 187.2 187.2
Input Voltage 90-305VAC 90-305VAC 90-305VAC 90-305VAC 90-305VAC 90-305VAC
Output Current 12.5A 10A 6.3A 4.2A 3.2A 2.8A
Output Voltage 12 15 24 36 48 54
Output Voltage Options Single Single Single Single Single Single
DC output adjustment 10.8-13.5V 13.5-17V 22-27V 33-40V 43-53V 49-58V
Dimensions 228x 68x 38.8 228x 68x 38.8 228x 68x 38.8 228x 68x 38.8 228x 68x 38.8 228x 68x 38.8
Working Temperature -55~+70°C
Safety Standards UL60950-1, IP65 (or IP68 for HEP-185 Black type) approved ; design refer to TUV EN60950-1
EMC Standards Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level (surge 6KV), criteria A
