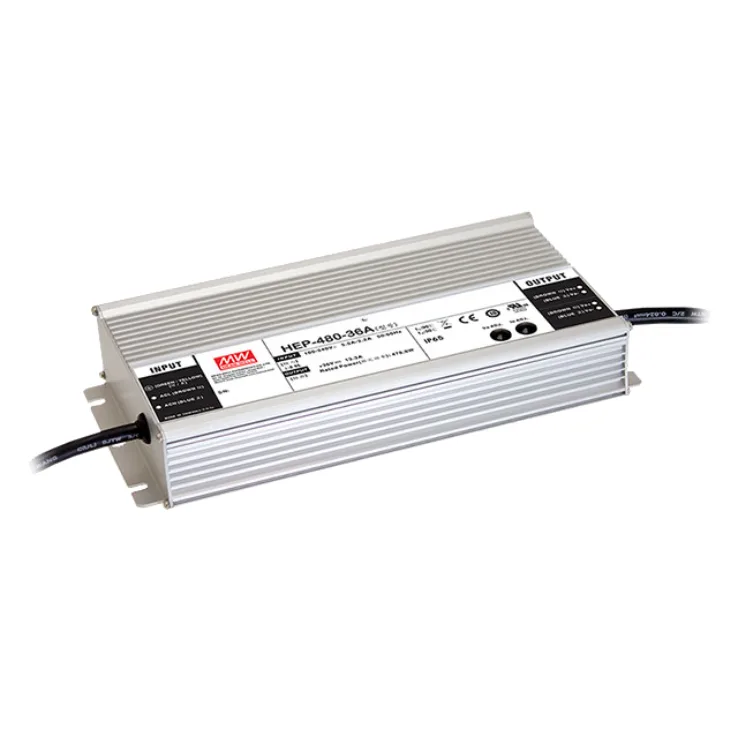

MEAN WELL HEP-480-A Series Enclosed Power Supplies 478.8–480.6W

Download Datasheet
Models:
  • HEP-480-24A
  • HEP-480-36A
  • HEP-480-48A
  • HEP-480-54A
Manufacturer: MEAN WELL
Type: Enclosed Power Supplies

HEP-480-A Series Features:

Withstand 10G vibration test

Fanless design, cooling by free air convection

Protections: Short circuit / Overload / Over voltage / Over Temperature

Other features:

  • Universal AC input (up to 305VAC) / Full range
  • Built-in active PFC function
  • High efficiency up to 95%
  • -55~+65°C wide operating range
  • Aluminium case and filling with heat-conducted silicone
  • IP65 design, optional IP68 rated model available
  • Meet 6KV surge immunity level
  • Operation altitude up to 5000 meters
  • 6 years warranty
Wattage 480 478.8 480 480.6
Input Voltage 90-305VAC 127-431VDC 90-305VAC 127-431VDC 90-305VAC 127-431VDC 90-305VAC 127-431VDC
Output Current 20A 13.3A 10A 8.9A
Output Voltage 24 36 48 54
Output Voltage Options Single Single Single Single
DC output adjustment 20.4-25.2V 30.6-37.8V 40.8-50.4V 45.9-56.7V
Dimensions 262x 125x 43.8 262x 125x 43.8 262x 125x 43.8 262x 125x 43.8
Working Temperature -55~+65°C
Safety Standards UL60950-1, IP65 (or IP68 for HEP-240 Black type) approved ; design refer to TUV EN60950-1
EMC Standards Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level (surge 6KV), criteria A
